目前raksmart的cloud云服务器正式对外售卖，cloud的网络分为大陆优化，精品网，cn2网络，简单介绍下三个网络的区别，大陆优化，也就是三网直连线路；精品网，是联通、电信、移动直连都包含；cn2网络就是纯粹的cn2 gia网络。cloud云服务器的机房目前只有一个美国硅谷，新的机房也在陆续筹建中。
对于想了解raksmart的cloud云服务器怎么样，好不好的童鞋可以关注了，这篇文章就来分享raksmart云服务器的大陆优化线路的测评数据。
raksmart：cloud云服务器之精品线路测评：https://www.daniao.org/14638.html
raksmart：cloud云服务器之大陆优化线路测评：https://www.daniao.org/14638.html
raksmart，cloud云服务器之CN2线路测评：https://www.daniao.org/14682.html

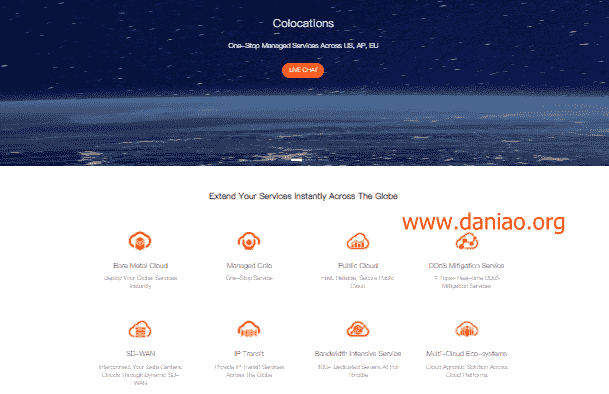

1、官网
2、cloud云服务器介绍
1）基于kvm虚拟，每个云服务器最高支持48核，256G内存，默认40G系统盘，可添加数据盘，不限制大小，数据盘每G每月0.08美元！
2）带宽支持1Mbps~5000Mbps（自己选择大小，不限流量使用可以霸占，每Mbps是0.4美元/月）
3）操作系统支持centos\debian\ubuntu\fedora\Windows server 2003-2008-2012-2016-2019
4）网络线路有“大陆优化”、“精品网”、“cn2”可选、
5）自带一个IPv4、一个快照(snapshot)、2个备份（backup）、付款周期为月、季、半年、年。最低配，7.59美元/月！
6）网络分为vpc网络和经典网络，推荐使用vpc网络，支持各种高级网络特性！！
7）机房，目前仅有一个硅谷，其他的陆续筹建中。
3、简单购买

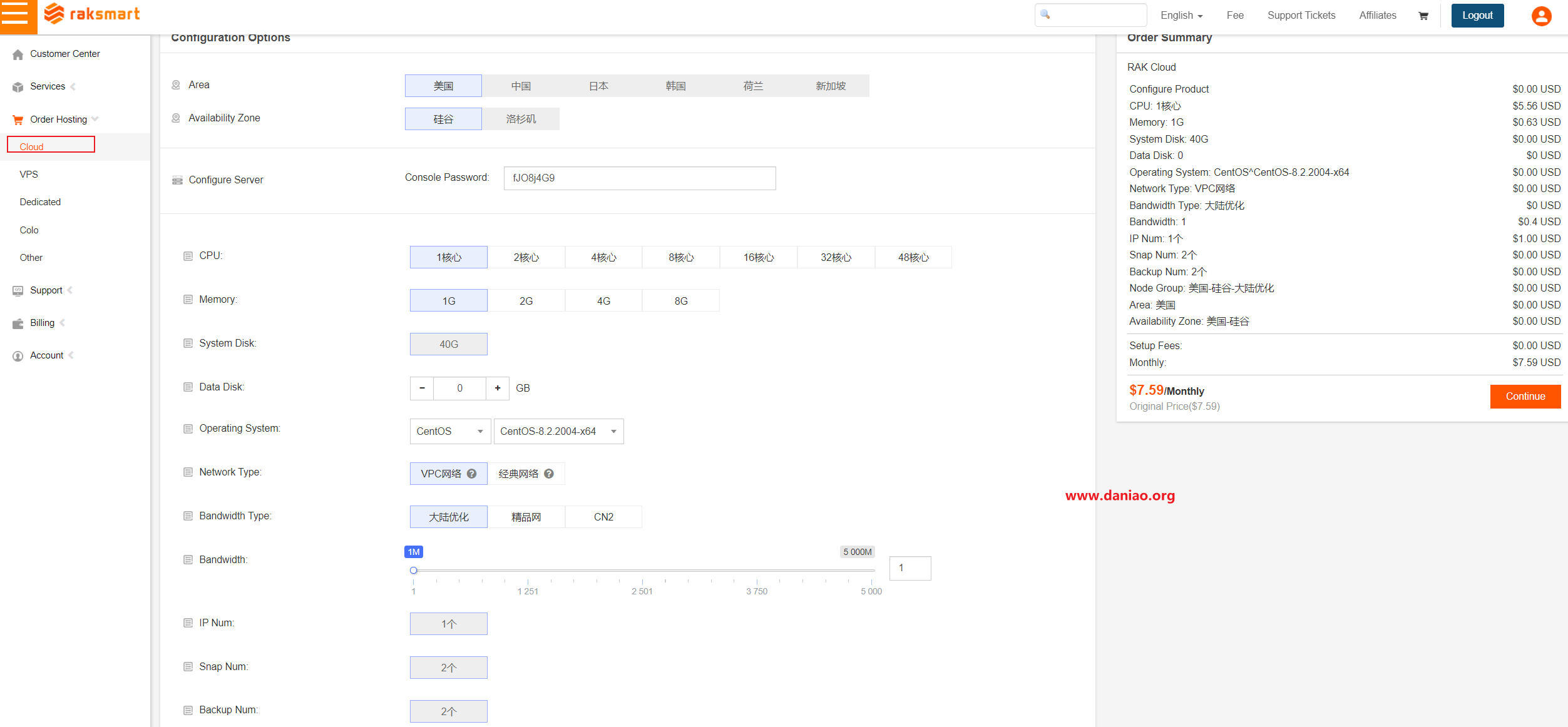

登录raksmart官网，后台找到cloud，点击进入。具体看图：
4、测评机器
1）本次测评的为“大陆优化线路”！
2）因为是云服务器，这里只例举几个，其中红色文字的为今天的测评机器。
3）测试IP，142.4.124.17
| CPU | 内存 | SSD | 流量 | 带宽 | 价格 | 购买 |
| 1核 | 1G | 40G | 不限 | 1M | $7.59/月 | 链接 |
| 2核 | 4G | 40G | 不限 | 20M | $22.6/月 | 链接 |
| 4核 | 4G | 40G | 不限 | 20M | $33.7/月 | 链接 |
| 8核 | 8G | 40G | 不限 | 30M | $62.5/月 | 链接 |

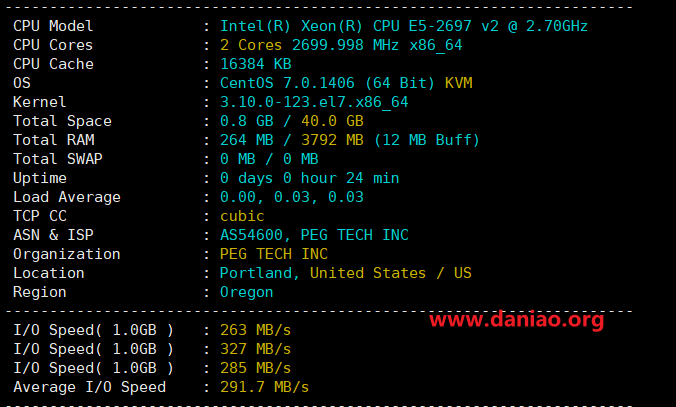

5、系统信息
CPU，e5-2697，磁盘io在291左右。
6、杂项测试
媒体信息

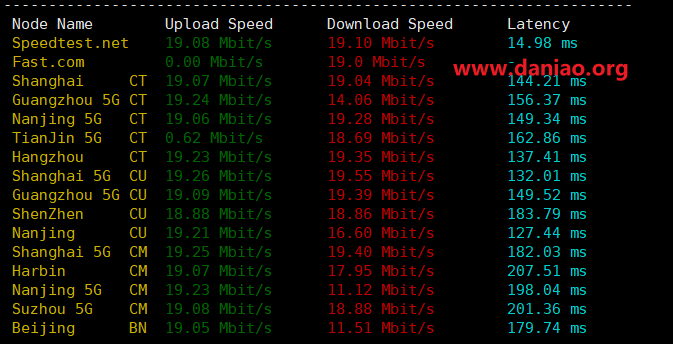

国内测速，上下对等20M，跑的还行。

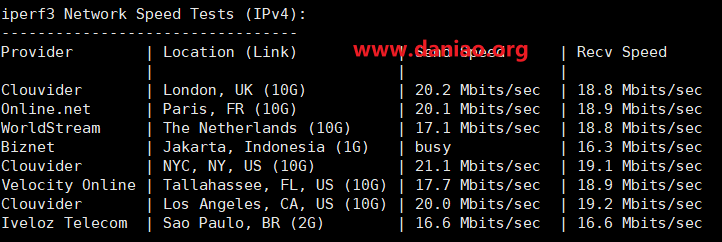

国外测速，欧美跑的很不错，跑满！！

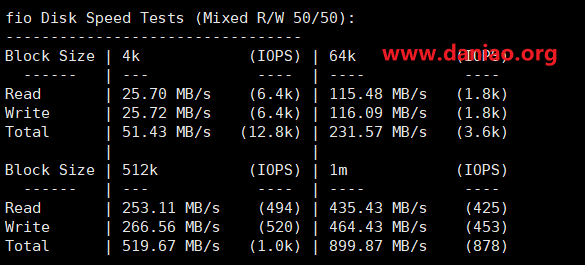

FIO测试
6、路由测试
联通回程，走联通骨干，直连！
Traceroute to China, Beijing CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 123.125.99.1 (123.125.99.1), 30 hops max, 32 byte packets 1 10.0.90.1 0.25 ms * LAN Address 2 107.148.200.254 1.17 ms AS54600 United States, California, San Jose, petaexpress.com 3 10.255.254.6 0.98 ms * LAN Address 4 10.255.254.87 1.40 ms * LAN Address 5 219.158.45.177 7.42 ms AS4837 United States, California, San Jose, ChinaUnicom 6 219.158.97.181 127.53 ms AS4837 China, Shanghai, ChinaUnicom 7 219.158.113.134 127.52 ms AS4837 China, Shanghai, ChinaUnicom 8 219.158.113.105 156.37 ms AS4837 China, Shanghai, ChinaUnicom 9 * 10 61.149.203.122 176.39 ms AS4808 China, Beijing, ChinaUnicom 11 123.126.0.214 148.27 ms AS4808 China, Beijing, ChinaUnicom 12 124.65.194.50 147.20 ms AS4808 China, Beijing, ChinaUnicom 13 61.135.113.154 153.93 ms AS4808 China, Beijing, ChinaUnicom 14 * 15 123.125.99.1 150.95 ms AS4808 China, Beijing, ChinaUnicom
Traceroute to China, Shanghai CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 58.247.8.158 (58.247.8.158), 30 hops max, 32 byte packets 1 10.0.90.1 0.19 ms * LAN Address 2 107.148.200.254 0.98 ms AS54600 United States, California, San Jose, petaexpress.com 3 10.255.254.6 1.20 ms * LAN Address 4 10.255.254.76 1.44 ms * LAN Address 5 219.158.45.177 6.87 ms AS4837 United States, California, San Jose, ChinaUnicom 6 219.158.97.181 126.86 ms AS4837 China, Shanghai, ChinaUnicom 7 219.158.8.181 138.78 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 8 219.158.8.209 132.21 ms AS4837 China, Shanghai, ChinaUnicom 9 * 10 139.226.228.46 124.28 ms AS17621 China, Shanghai, ChinaUnicom 11 139.226.225.22 124.72 ms AS17621 China, Shanghai, ChinaUnicom 12 58.247.8.153 147.03 ms AS17621 China, Shanghai, ChinaUnicom 13 * 14 * 15 * 16 *
Traceroute to China, Guangzhou CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 210.21.4.130 (210.21.4.130), 30 hops max, 32 byte packets 1 10.0.90.1 0.18 ms * LAN Address 2 107.148.200.254 2.31 ms AS54600 United States, California, San Jose, petaexpress.com 3 10.255.254.6 0.99 ms * LAN Address 4 10.255.254.76 1.46 ms * LAN Address 5 219.158.45.177 5.05 ms AS4837 United States, California, San Jose, ChinaUnicom 6 219.158.116.237 140.47 ms AS4837 China, Shanghai, ChinaUnicom 7 219.158.8.177 139.12 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 8 219.158.7.125 132.51 ms AS4837 China, Shanghai, ChinaUnicom 9 * 10 112.96.0.2 162.01 ms AS17816 China, Guangdong, Guangzhou, ChinaUnicom 11 120.80.170.254 158.03 ms AS17622 China, Guangdong, Guangzhou, ChinaUnicom 12 * 13 * 14 * 15 * 16 *

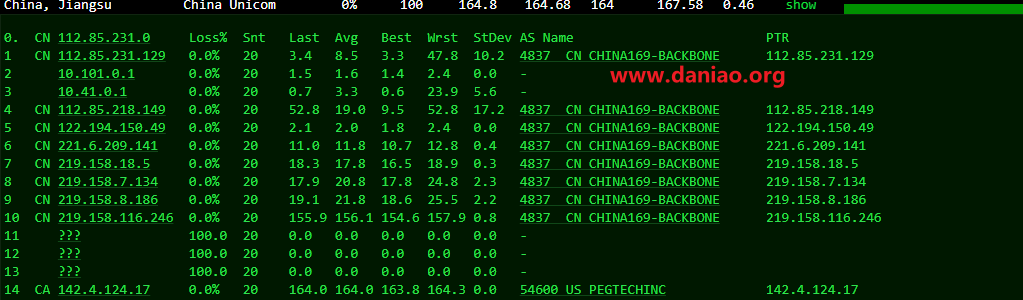

联通去程，和回程一样，直连！！
电信回程，电信163直连！
Traceroute to China, Beijing CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 180.149.128.9 (180.149.128.9), 30 hops max, 32 byte packets 1 10.0.90.1 0.16 ms * LAN Address 2 107.148.200.254 0.99 ms AS54600 United States, California, San Jose, petaexpress.com 3 10.255.254.6 1.10 ms * LAN Address 4 10.255.254.87 1.66 ms * LAN Address 5 218.30.53.185 5.59 ms AS4134 United States, California, San Jose, ChinaTelecom 6 202.97.81.177 2.33 ms AS4134 United States, California, San Jose, ChinaTelecom 7 202.97.51.194 144.59 ms AS4134 China, Beijing, ChinaTelecom 8 202.97.58.117 142.59 ms AS4134 China, Beijing, ChinaTelecom 9 * 10 180.149.128.9 159.11 ms AS23724 China, Beijing, ChinaTelecom
Traceroute to China, Shanghai CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 180.153.28.5 (180.153.28.5), 30 hops max, 32 byte packets 1 10.0.90.1 0.84 ms * LAN Address 2 107.148.200.254 0.89 ms AS54600 United States, California, San Jose, petaexpress.com 3 10.255.254.6 1.30 ms * LAN Address 4 10.255.254.76 2.92 ms * LAN Address 5 218.30.53.185 6.69 ms AS4134 United States, California, San Jose, ChinaTelecom 6 202.97.81.85 2.93 ms AS4134 United States, California, San Jose, ChinaTelecom 7 202.97.89.134 142.76 ms AS4134 China, Shanghai, ChinaTelecom 8 * 9 202.97.94.242 134.67 ms AS4134 China, Shanghai, ChinaTelecom 10 * 11 * 12 124.74.232.66 141.80 ms AS4811 China, Shanghai, ChinaTelecom 13 101.227.255.46 146.05 ms AS4812 China, Shanghai, ChinaTelecom 14 180.153.28.5 146.33 ms AS4812 China, Shanghai, ChinaTelecom
Traceroute to China, Guangzhou CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 113.108.209.1 (113.108.209.1), 30 hops max, 32 byte packets 1 10.0.90.1 0.21 ms * LAN Address 2 107.148.200.254 0.97 ms AS54600 United States, California, San Jose, petaexpress.com 3 10.255.254.6 1.21 ms * LAN Address 4 10.255.254.87 1.61 ms * LAN Address 5 218.30.53.185 7.11 ms AS4134 United States, California, San Jose, ChinaTelecom 6 202.97.62.5 5.00 ms AS4134 United States, California, San Jose, ChinaTelecom 7 202.97.43.241 152.79 ms AS4134 China, Guangdong, Guangzhou, ChinaTelecom 8 202.97.91.193 155.96 ms AS4134 China, Guangdong, Guangzhou, ChinaTelecom 9 * 10 * 11 113.108.209.1 192.56 ms AS58466 China, Guangdong, Guangzhou, ChinaTelecom
电信去程，和回程一样，电信骨干直连。
移动回程，走移动骨干线路，直连。
Traceroute to China, Guangzhou CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 120.196.212.25 (120.196.212.25), 30 hops max, 32 byte packets 1 10.0.90.1 0.13 ms * LAN Address 2 107.148.200.254 0.99 ms AS54600 United States, California, San Jose, petaexpress.com 3 10.255.254.6 1.23 ms * LAN Address 4 10.255.254.87 3.11 ms * LAN Address 5 223.119.66.53 1.84 ms AS58453 ChinaMobile 6 223.120.6.69 1.63 ms AS58453 United States, California, San Jose, ChinaMobile 7 * 8 221.183.55.74 164.53 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 9 221.176.24.61 165.26 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 10 221.176.24.101 160.60 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 11 111.24.4.249 162.77 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 12 111.24.5.34 165.62 ms AS9808 China, Guangdong, Shenzhen, ChinaMobile 13 183.235.226.5 164.69 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 14 211.139.180.106 166.68 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 15 * 16 * 17 120.196.212.25 164.87 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile
Traceroute to China, Beijing CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 211.136.25.153 (211.136.25.153), 30 hops max, 32 byte packets 1 10.0.90.1 0.25 ms * LAN Address 2 107.148.200.254 0.89 ms AS54600 United States, California, San Jose, petaexpress.com 3 10.255.254.6 1.30 ms * LAN Address 4 10.255.254.76 1.38 ms * LAN Address 5 223.119.66.53 1.56 ms AS58453 ChinaMobile 6 223.120.6.69 1.84 ms AS58453 United States, California, San Jose, ChinaMobile 7 * 8 * 9 * 10 221.176.27.253 189.40 ms AS9808 China, Beijing, ChinaMobile 11 111.24.2.237 189.77 ms AS9808 China, Beijing, ChinaMobile 12 111.24.3.18 189.03 ms AS9808 China, Beijing, ChinaMobile 13 * 14 * 15 211.136.63.66 196.55 ms AS56048 China, Beijing, ChinaMobile 16 * 17 * 18 * 19 211.136.25.153 199.26 ms AS56048 China, Beijing, ChinaMobile
Traceroute to China, Shanghai CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 221.183.55.22 (221.183.55.22), 30 hops max, 32 byte packets 1 10.0.90.1 0.21 ms * LAN Address 2 107.148.200.254 2.60 ms AS54600 United States, California, San Jose, petaexpress.com 3 10.255.254.6 1.20 ms * LAN Address 4 10.255.254.76 1.80 ms * LAN Address 5 223.119.66.53 1.64 ms AS58453 ChinaMobile 6 223.120.6.69 1.56 ms AS58453 United States, California, San Jose, ChinaMobile 7 * 8 * 9 * 10 * 11 * 12 * 13 * 14 *

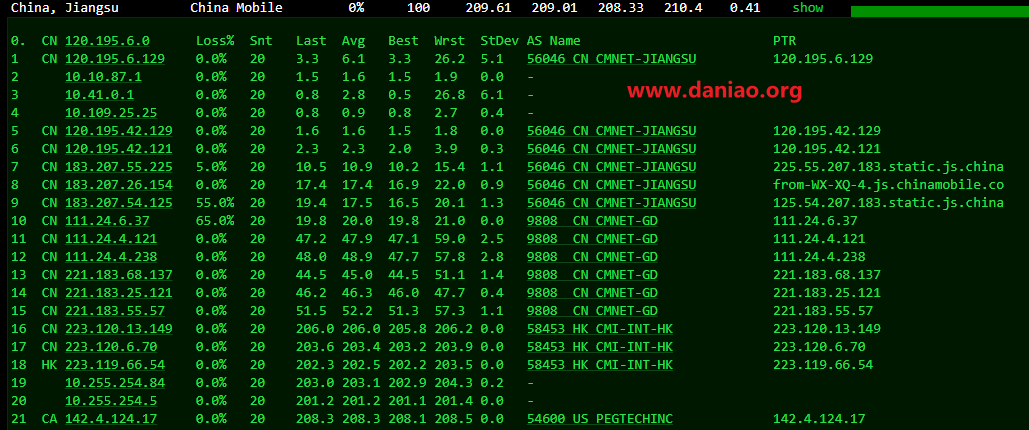

移动去程，万变不变的cmi线路。

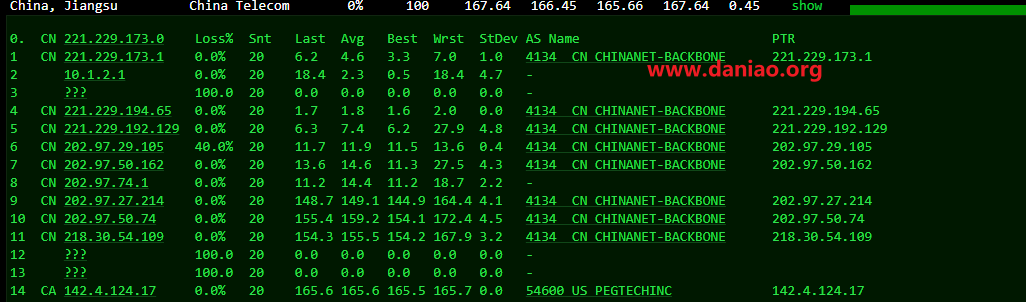

7、路由掉包
非晚高峰测试！

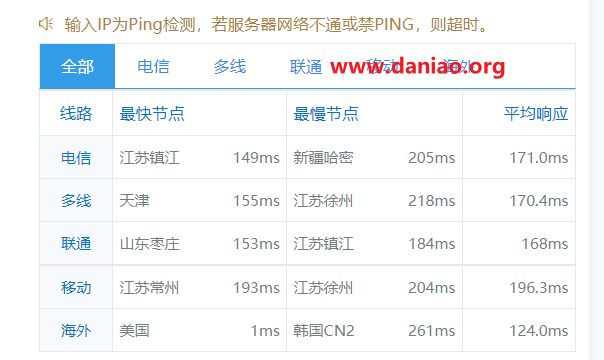

8、ping
数据提供，ping.chinaz.com

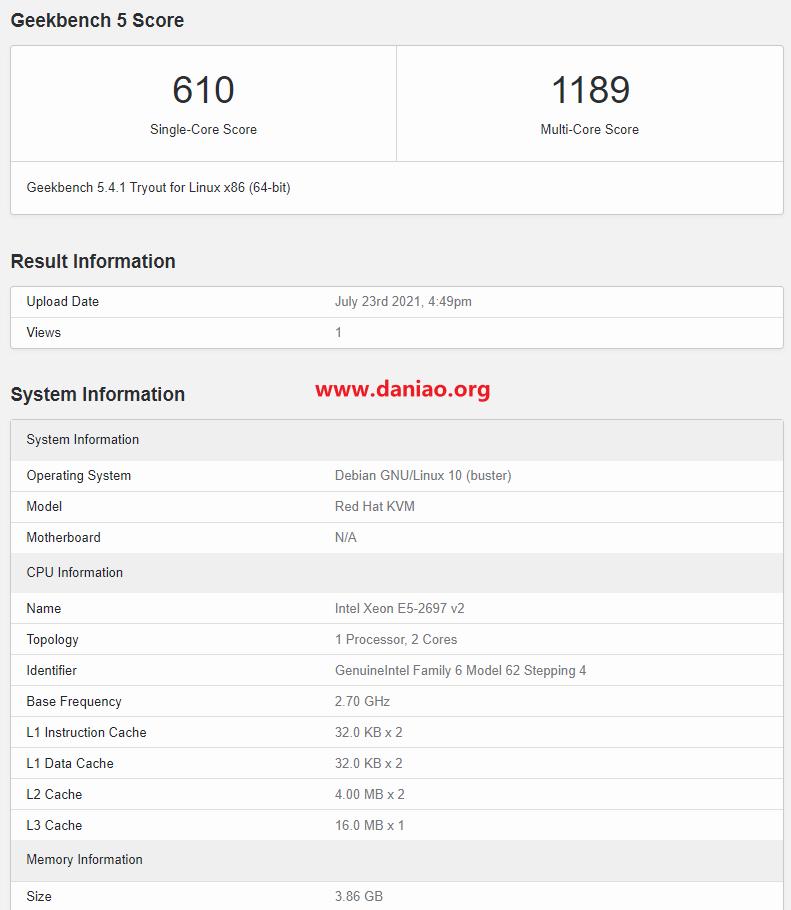

9、Geekbench 5 Benchmark Test
单核，610，双核，1189，性能中等。
详细，https://browser.geekbench.com/v5/cpu/8951568
10、最后
线路总结，三网双程都是直连，各自都各自的骨干线路，线路有过优化，ping值和掉包都很好看。
