raksmart的产品线还是很丰富的，不过主营应该是vps，云服务器，独立服务器，大带宽服务器，服务器托管这些。
这篇文章测评的是raksmart的日本独立服务器，他们家叫这个为裸机云，基本特征默认3个IPv4，可选大陆优化线路和精品网两种，大陆优化线路最低50Mbps，精品网20Mbps，不限制流量，最高都可可升级至1Gbps独享。废话不多说了，感兴趣的就围观吧。
1、官网
2、日本独立服务器介绍
1）官方叫做裸机云，所以购买的时候找这个标题
2）线路分为“大陆优化线路”，“精品网”其中大陆优化线路最低50Mbps，精品网20Mbps，最高都可升级至1Gbps独享！
3）IP默认是3个，最高可添加253个ipv4
4）不限制流量
5）硬盘默认都为1T HDD
3、测评机器
1）本次测评的为日本东京的独立服务器，官网叫裸机云，线路为“精品线路”！带宽为20M
2）注意，其中红色文字的为今天的测评机器。测试IP，104.233.164.42
3）注意，IP默认为3个
| CPU | 内存 | 硬盘 | 带宽 | 流量 | 现价 | 购买 |
| E3-1230 | 16G | 1T HDD | 50M | 不限 | $107 | 链接 |
| E5-2630L | 16G | 1T HDD | 50M | 不限 | $139 | 链接 |
| E5-2680 | 16G | 1T HDD | 50M | 不限 | $159 | 链接 |
| E5-2630L*2 | 32G | 1T HDD | 50M | 不限 | $169 | 链接 |
| E5-2680*2 | 32G | 1T HDD | 50M | 不限 | $249 | 链接 |

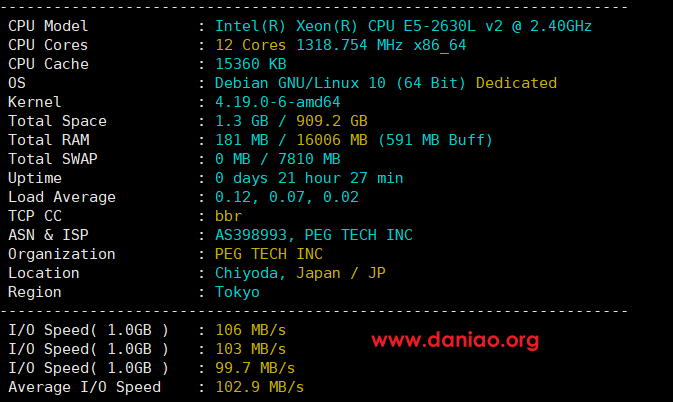

4、系统信息
CPU E5-2630L v2 @ 2.40GHz，磁盘IO，102.9 MB/s
5、杂项测试

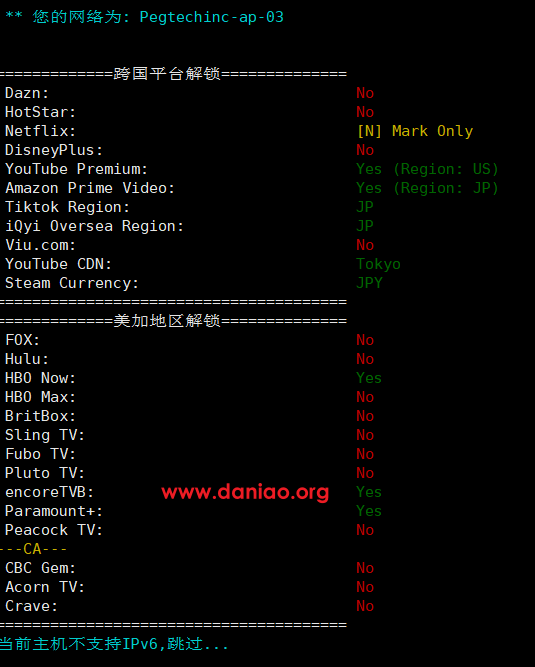

媒体信息

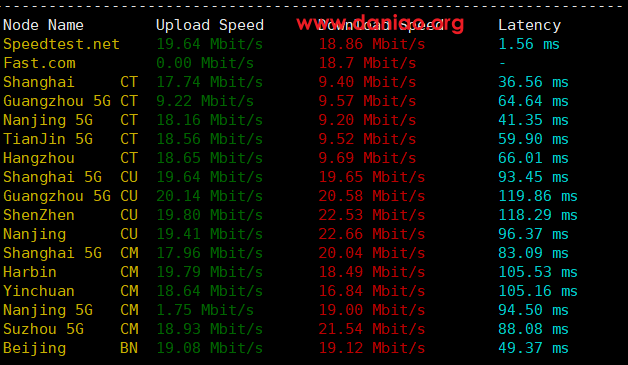

国内测速，上行和下行最高都能跑满，和官方宣称的20M相符。

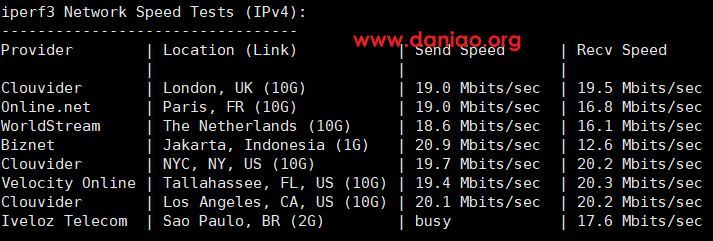

国外测速，欧美测速，也跑满了带宽。

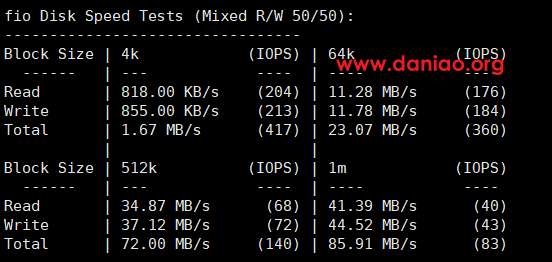

FIO读写测试
6、路由信息
电信回程，cn2 gia，直连。
Traceroute to China, Guangzhou CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 113.108.209.1 (113.108.209.1), 30 hops max, 32 byte packets 1 104.233.164.62 0.39 ms AS398993 Japan, Tokyo, petaexpress.com 2 * 3 * 4 * 5 * 6 59.43.186.249 36.82 ms * China, Shanghai, ChinaTelecom 7 * 8 * 9 202.97.82.86 73.60 ms AS4134 China, Guangdong, Guangzhou, ChinaTelecom 10 * 11 113.108.209.1 59.14 ms AS58466 China, Guangdong, Guangzhou, ChinaTelecom Traceroute to China, Shanghai CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 180.153.28.5 (180.153.28.5), 30 hops max, 32 byte packets 1 104.233.164.62 0.24 ms AS398993 Japan, Tokyo, petaexpress.com 2 182.54.128.134 0.43 ms AS64050 Japan, Tokyo, bgp.net 3 182.54.128.17 1.35 ms AS64050 Japan, Tokyo, bgp.net 4 202.55.27.93 1.12 ms AS4809 Japan, Tokyo, ChinaTelecom 5 59.43.186.185 35.77 ms * China, Shanghai, ChinaTelecom 6 * 7 59.43.138.53 38.70 ms * China, Shanghai, ChinaTelecom 8 61.152.24.182 37.37 ms AS4812 China, Shanghai, ChinaTelecom 9 124.74.166.218 37.41 ms AS4812 China, Shanghai, ChinaTelecom 10 101.95.225.206 37.58 ms AS4811 China, Shanghai, ChinaTelecom 11 101.227.255.34 40.89 ms AS4812 China, Shanghai, ChinaTelecom 12 180.153.28.5 38.82 ms AS4812 China, Shanghai, ChinaTelecom Traceroute to China, Beijing CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 180.149.128.9 (180.149.128.9), 30 hops max, 32 byte packets 1 104.233.164.62 1.35 ms AS398993 Japan, Tokyo, petaexpress.com 2 182.54.128.134 0.43 ms AS64050 Japan, Tokyo, bgp.net 3 182.54.128.17 1.67 ms AS64050 Japan, Tokyo, bgp.net 4 202.55.27.93 1.15 ms AS4809 Japan, Tokyo, ChinaTelecom 5 59.43.183.53 36.03 ms * China, Shanghai, ChinaTelecom 6 59.43.182.233 66.51 ms * China, Beijing, ChinaTelecom 7 * 8 59.43.132.9 60.48 ms * China, Beijing, ChinaTelecom 9 * 10 36.110.244.46 66.36 ms AS23724 China, Beijing, ChinaTelecom 11 36.110.246.198 66.52 ms AS23724 China, Beijing, ChinaTelecom 12 180.149.128.9 71.74 ms AS23724 China, Beijing, ChinaTelecom

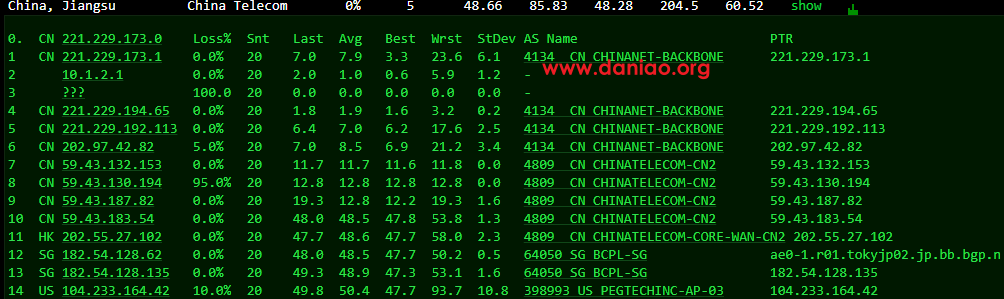

电信去程，去程依然走cn2 gia线路。
联通回程，饶中国香港走ntt线路，之后走联通169线路。
Traceroute to China, Guangzhou CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 210.21.4.130 (210.21.4.130), 30 hops max, 32 byte packets 1 104.233.164.62 0.31 ms AS398993 Japan, Tokyo, petaexpress.com 2 182.54.128.152 0.43 ms AS64050 bgp.net 3 182.54.128.61 0.81 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.66 1.11 ms AS64050 Japan, Tokyo, bgp.net 5 103.198.146.50 47.02 ms AS64050 China, Hong Kong, bgp.net 6 203.131.242.9 46.00 ms AS2914 China, Hong Kong, ntt.com 7 129.250.6.99 49.64 ms AS2914 China, Hong Kong, ntt.com 8 129.250.2.50 45.53 ms AS2914 Japan, Tokyo, ntt.com 9 129.250.3.33 49.49 ms AS2914 Japan, Tokyo, ntt.com 10 219.158.42.5 117.94 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 11 219.158.103.33 115.87 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 12 219.158.103.217 121.75 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 13 112.91.0.246 115.60 ms AS17816 China, Guangdong, Guangzhou, ChinaUnicom 14 120.80.79.194 117.57 ms AS17622 China, Guangdong, Guangzhou, ChinaUnicom 15 * 16 * 17 * 18 * 19 * 20 * 21 * 22 * 23 * 24 * 25 * 26 * 27 * 28 * 29 * 30 * Traceroute to China, Shanghai CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 58.247.8.158 (58.247.8.158), 30 hops max, 32 byte packets 1 104.233.164.62 0.27 ms AS398993 Japan, Tokyo, petaexpress.com 2 182.54.128.152 0.38 ms AS64050 bgp.net 3 182.54.128.61 0.84 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.66 2.27 ms AS64050 Japan, Tokyo, bgp.net 5 103.198.146.50 84.96 ms AS64050 China, Hong Kong, bgp.net 6 203.131.242.9 45.79 ms AS2914 China, Hong Kong, ntt.com 7 129.250.6.101 45.90 ms AS2914 China, Hong Kong, ntt.com 8 129.250.2.42 49.72 ms AS2914 Japan, Osaka, ntt.com 9 129.250.2.40 49.62 ms AS2914 Japan, Osaka, ntt.com 10 129.250.66.86 92.01 ms AS2914 Japan, Osaka, ntt.com 11 219.158.6.205 95.75 ms AS4837 China, Beijing, ChinaUnicom 12 219.158.8.201 94.11 ms AS4837 China, Shanghai, ChinaUnicom 13 * 14 139.226.228.46 105.53 ms AS17621 China, Shanghai, ChinaUnicom 15 139.226.225.22 94.70 ms AS17621 China, Shanghai, ChinaUnicom 16 58.247.8.153 112.04 ms AS17621 China, Shanghai, ChinaUnicom 17 * 18 * 19 * 20 * 21 * 22 * 23 * 24 * 25 * 26 * 27 * 28 * 29 * 30 * Traceroute to China, Beijing CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 123.125.99.1 (123.125.99.1), 30 hops max, 32 byte packets 1 104.233.164.62 0.38 ms AS398993 Japan, Tokyo, petaexpress.com 2 182.54.128.154 0.35 ms AS64050 bgp.net 3 182.54.128.61 0.81 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.66 0.99 ms AS64050 Japan, Tokyo, bgp.net 5 * 6 219.158.16.49 34.34 ms AS4837 China, Shanghai, ChinaUnicom 7 219.158.8.185 54.26 ms AS4837 China, Beijing, ChinaUnicom 8 219.158.7.133 49.11 ms AS4837 China, Shanghai, ChinaUnicom 9 219.158.6.165 54.29 ms AS4837 China, Beijing, ChinaUnicom 10 61.49.214.46 48.47 ms AS4808 China, Beijing, ChinaUnicom 11 221.219.202.254 50.94 ms AS4808 China, Beijing, ChinaUnicom 12 124.65.194.46 51.21 ms AS4808 China, Beijing, ChinaUnicom 13 61.135.113.158 55.35 ms AS4808 China, Beijing, ChinaUnicom 14 61.135.113.158 50.26 ms AS4808 China, Beijing, ChinaUnicom 15 * 16 123.125.99.1 52.94 ms AS4808 China, Beijing, ChinaUnicom

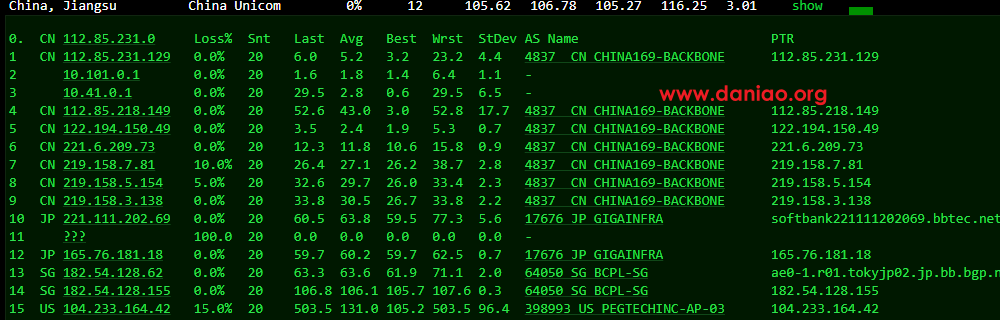

联通去程，联通169跳日本软银线路。
移动回程，走移动骨干线路，直连。
Traceroute to China, Guangzhou CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 120.196.212.25 (120.196.212.25), 30 hops max, 32 byte packets 1 104.233.164.62 0.32 ms AS398993 Japan, Tokyo, petaexpress.com 2 182.54.128.156 54.96 ms AS64050 bgp.net 3 182.54.128.61 0.75 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.66 1.02 ms AS64050 Japan, Tokyo, bgp.net 5 103.198.146.50 47.29 ms AS64050 China, Hong Kong, bgp.net 6 223.119.17.233 50.97 ms AS58453 China, Hong Kong, ChinaMobile 7 223.120.2.53 50.69 ms AS58453 China, Hong Kong, ChinaMobile 8 * 9 221.183.55.70 55.38 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 10 221.176.19.213 55.31 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 11 * 12 111.24.4.253 57.31 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 13 111.24.5.218 59.14 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 14 211.136.196.242 58.34 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 15 211.136.196.250 60.42 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 16 * 17 211.139.180.110 63.03 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 18 120.196.212.25 65.10 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile Traceroute to China, Shanghai CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 221.183.55.22 (221.183.55.22), 30 hops max, 32 byte packets 1 104.233.164.62 2.55 ms AS398993 Japan, Tokyo, petaexpress.com 2 182.54.128.156 67.02 ms AS64050 bgp.net 3 182.54.128.61 0.97 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.66 1.12 ms AS64050 Japan, Tokyo, bgp.net 5 103.198.146.50 48.30 ms AS64050 China, Hong Kong, bgp.net 6 223.119.17.233 50.44 ms AS58453 China, Hong Kong, ChinaMobile 7 223.120.2.53 50.60 ms AS58453 China, Hong Kong, ChinaMobile 8 * 9 * 10 221.183.55.22 88.44 ms AS9808 China, Shanghai, ChinaMobile Traceroute to China, Beijing CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 211.136.25.153 (211.136.25.153), 30 hops max, 32 byte packets 1 104.233.164.62 0.31 ms AS398993 Japan, Tokyo, petaexpress.com 2 182.54.128.156 53.66 ms AS64050 bgp.net 3 182.54.128.61 0.81 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.66 3.90 ms AS64050 Japan, Tokyo, bgp.net 5 103.198.146.50 48.62 ms AS64050 China, Hong Kong, bgp.net 6 223.119.17.233 50.33 ms AS58453 China, Hong Kong, ChinaMobile 7 223.120.2.53 50.84 ms AS58453 China, Hong Kong, ChinaMobile 8 * 9 * 10 * 11 * 12 221.176.16.193 86.49 ms AS9808 China, Beijing, ChinaMobile 13 111.24.2.249 87.67 ms AS9808 China, Beijing, ChinaMobile 14 111.24.2.134 94.96 ms Limit Exceeded! ([email protected]) 15 * 16 * 17 211.136.95.226 90.77 ms Limit Exceeded! ([email protected]) 18 * 19 * 20 * 21 211.136.25.153 91.26 ms Limit Exceeded! ([email protected])

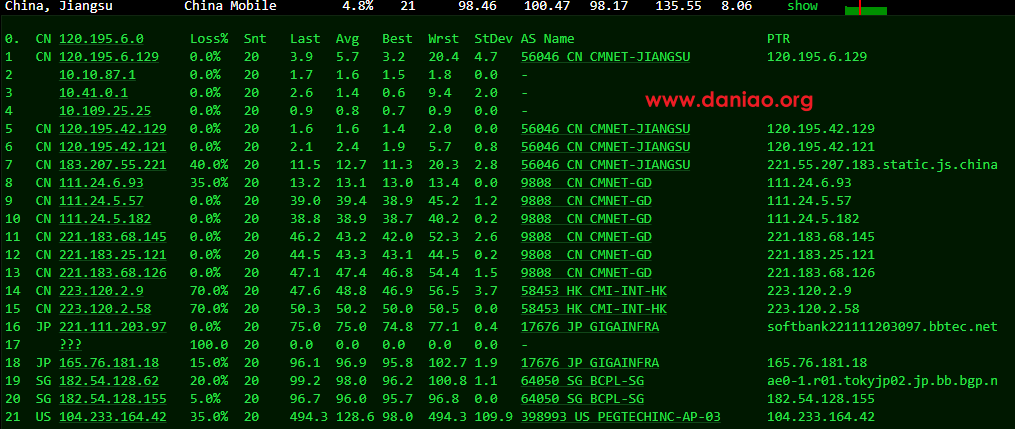

移动去程，走移动cmi直连。

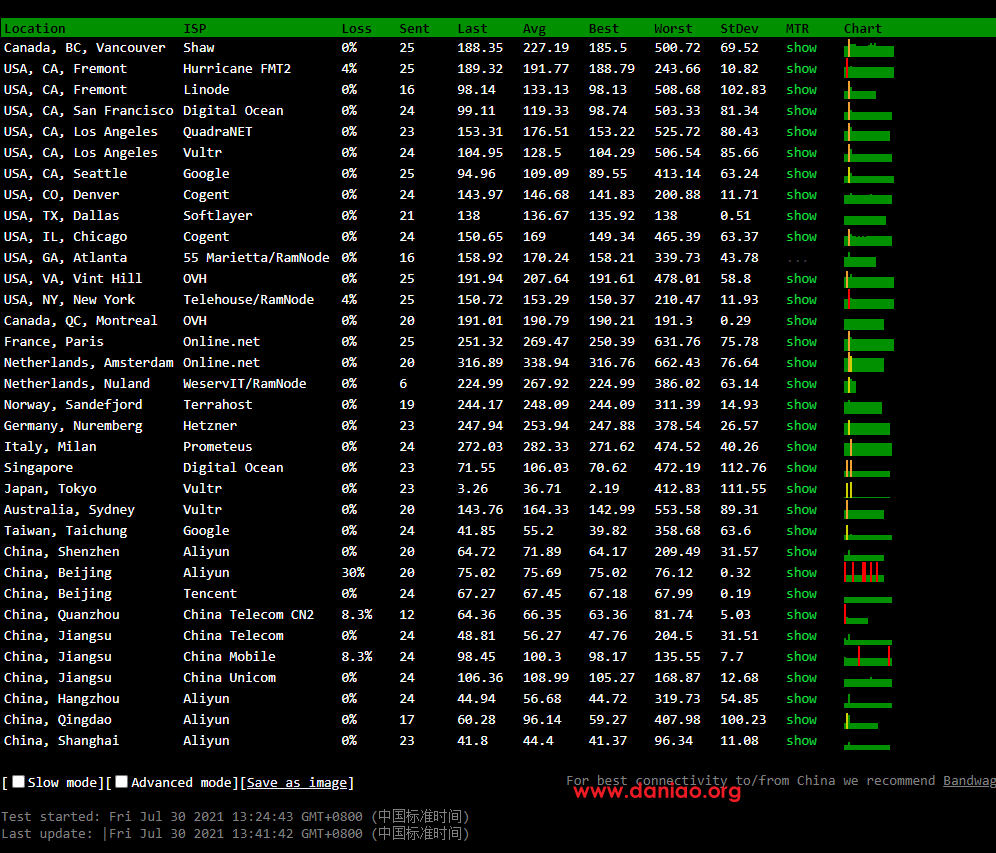

7、路由掉包
非晚高峰测试。

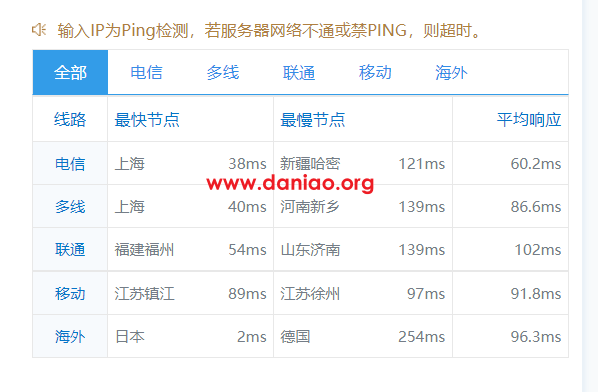

8、ping
数据提供，ping.chinaz.com，三网ping值良好，电信尤其优秀。

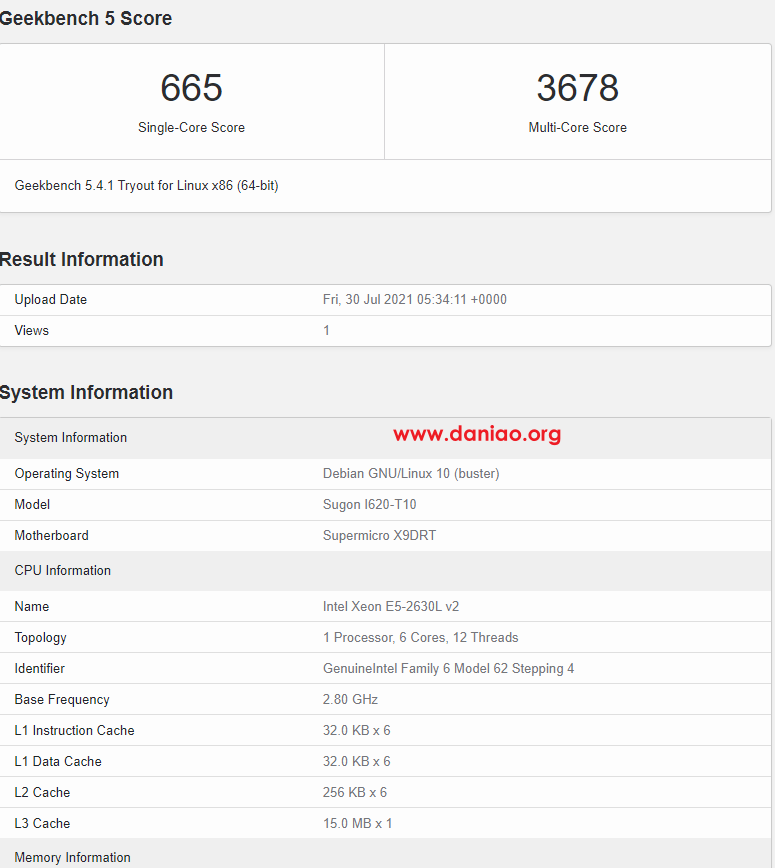

9、Geekbench 5 Benchmark Test
单核，665，多核，3678，性能中等。
详细，https://browser.geekbench.com/v5/cpu/9072615
10、最后
线路总结下，电信双向cn2 gia，移动和联通双向都是直连，本次测评属于精品线路，这个精品应该是体现在了电信上。总体来说，线路还是不错的。此外，服务器不限制流量，也是一个很大的亮点。
