本月也就是12月份raksmart日本云服务器正式上架了，该数据中心是继美国硅谷、洛杉矶、中国香港之后的第4处云服务器数据中心。目前日本东京云服务器最低配月付$8.73/月起，线路分为：大陆优化”、“cn2”，本文将测评大陆优化线路的云服务器，感兴趣的小伙伴可以围观。
1、官网
2、cloud云服务器介绍
1）基于kvm虚拟，日本云服务器最高支持48核，256G内存。默认分配40G系统盘，可添加数据盘，不限制大小，数据盘每G每月0.08美元！
2）带宽支持1Mbps~1000Mbps（自己选择大小，不限流量使用可以霸占，每Mbps是0.4美元/月）
3）操作系统支持centos\debian\ubuntu\fedora\Windows server 2003-2008-2012-2016-2019
4）网络线路有“大陆优化”、“cn2”可选。
5）自带一个IPv4、2个快照(snapshot)、2个备份（backup）、付款周期为月、季、半年、年。最低配，$8.73/月！
6）网络分为vpc网络和经典网络，推荐使用vpc网络，支持各种高级网络特性！！
3、云服务器配置
因为配置可选，这里只是简单例举几个，仅供参考。特征，带宽为独享，流量不限。
注意使用7折优惠码：Cloud-TP-30%dis
使用优惠码之后，最低配置低至$6/月！
| CPU | 内存 | SSD | 流量 | 带宽 | 价格 | 购买 |
| 1核 | 1G | 40G | 不限 | 1M | $8.73/月 | 链接 |
| 2核 | 2G | 40G | 不限 | 10M | $68.74/月 | 链接 |
| 4核 | 4G | 40G | 不限 | 10M | $87.31/月 | 链接 |
| 8核 | 8G | 40G | 不限 | 10M | $112.07/月 | 链接 |

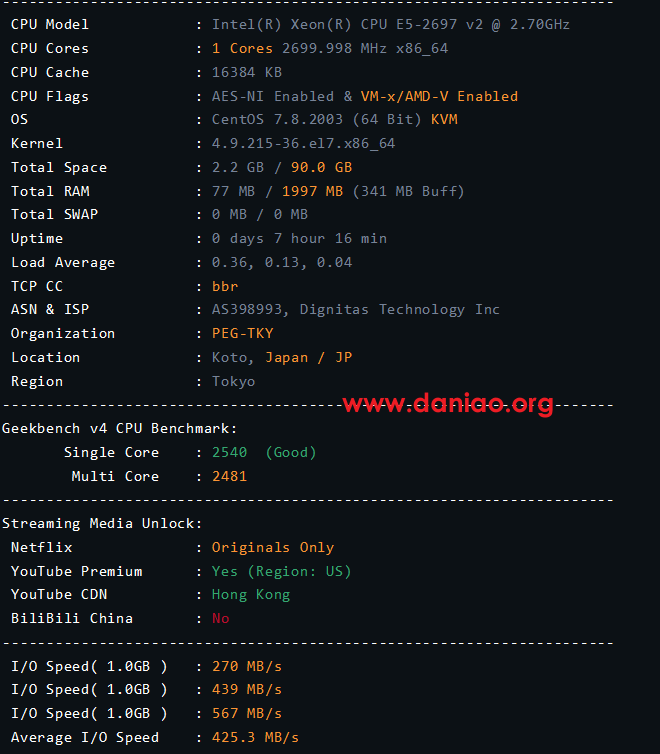

4、系统信息
CPU E5-2697 v2 @ 2.70GHz，磁盘IO： 425.3 MB/s
5、杂项测试

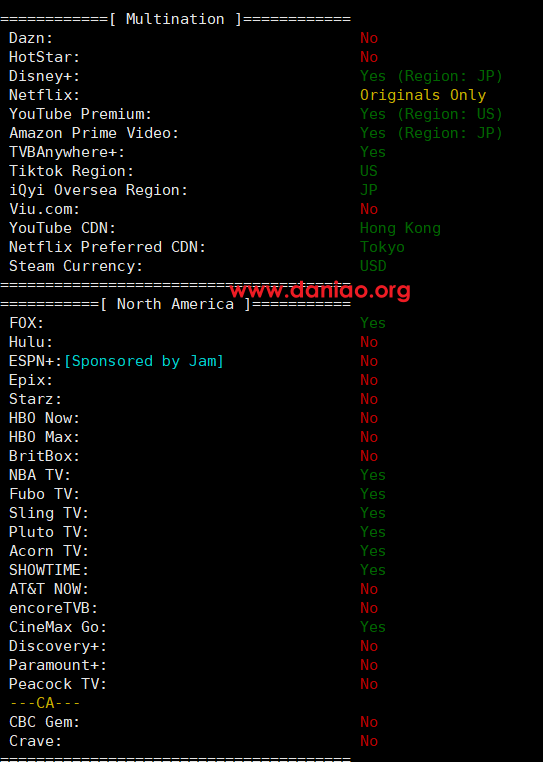

流媒体测试，还不错，能看Disney+

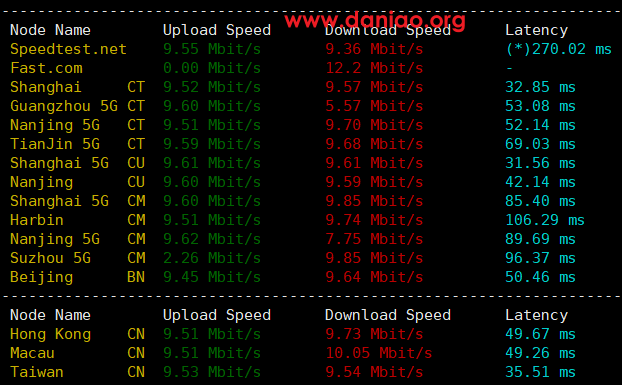

国内测速，上下行速度跑满。

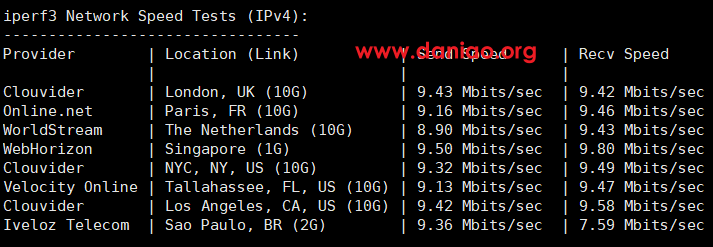

国外测速，欧美跑的和国内差不多，10M，差不多跑满。

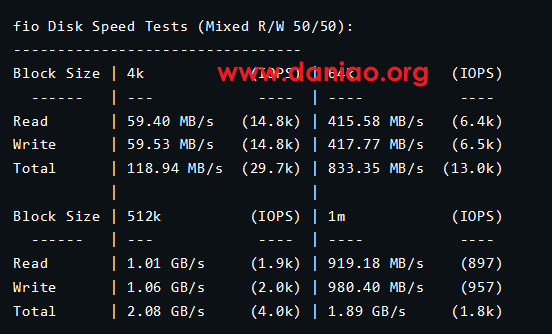

磁盘FIO读写，这个自己看吧。
6、路由测试
电信回程，直连，走bgp+ntt线路，国内强制走联通AS4837
Traceroute to China, Guangzhou CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 113.108.209.1 (113.108.209.1), 30 hops max, 32 byte packets 1 10.0.18.1 0.37 ms * LAN Address 2 38.26.224.126 1.72 ms AS398993 Japan, Tokyo, cogentco.com 3 182.54.128.132 25.87 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.70 0.82 ms AS64050 Japan, Tokyo, bgp.net 5 * 6 219.158.16.249 35.99 ms AS4837 China, Shanghai, ChinaUnicom 7 219.158.113.122 39.51 ms AS4837 China, Shanghai, ChinaUnicom 8 219.158.113.113 30.99 ms AS4837 China, Shanghai, ChinaUnicom 9 219.158.7.58 65.94 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 10 * 11 202.97.17.145 57.82 ms AS4134 China, Guangdong, Guangzhou, ChinaTelecom 12 * 13 * 14 113.108.209.1 53.27 ms AS4134 China, Guangdong, Guangzhou, ChinaTelecom Traceroute to China, Shanghai CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 180.153.28.5 (180.153.28.5), 30 hops max, 32 byte packets 1 10.0.18.1 0.17 ms * LAN Address 2 38.26.224.126 0.55 ms AS398993 Japan, Tokyo, cogentco.com 3 182.54.128.132 0.51 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.70 3.18 ms AS64050 Japan, Tokyo, bgp.net 5 * 6 219.158.30.69 34.26 ms AS4837 China, ChinaUnicom 7 219.158.6.205 38.08 ms AS4837 China, Shanghai, ChinaUnicom 8 219.158.113.105 33.10 ms AS4837 China, Shanghai, ChinaUnicom 9 * 10 202.97.17.193 36.60 ms AS4134 China, Shanghai, ChinaTelecom 11 202.97.62.205 34.25 ms AS4134 China, Shanghai, ChinaTelecom 12 * 13 * 14 * 15 101.227.255.34 36.26 ms AS4812 China, Shanghai, ChinaTelecom 16 180.153.28.5 30.19 ms AS4812 China, Shanghai, ChinaTelecom Traceroute to China, Beijing CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 180.149.128.9 (180.149.128.9), 30 hops max, 32 byte packets 1 10.0.18.1 0.29 ms * LAN Address 2 38.26.224.126 0.44 ms AS398993 Japan, Tokyo, cogentco.com 3 182.54.128.132 23.46 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.70 3.11 ms AS64050 Japan, Tokyo, bgp.net 5 * 6 219.158.112.253 41.76 ms AS4837 China, Shanghai, ChinaUnicom 7 219.158.113.122 40.23 ms AS4837 China, Shanghai, ChinaUnicom 8 219.158.113.105 34.03 ms AS4837 China, Shanghai, ChinaUnicom 9 219.158.6.169 60.24 ms AS4837 China, Beijing, ChinaUnicom 10 * 11 219.158.44.134 69.05 ms AS4837 China, Beijing, ChinaUnicom 12 * 13 36.110.245.178 67.44 ms AS23724 China, Beijing, ChinaTelecom 14 36.110.246.237 70.22 ms AS23724 China, Beijing, ChinaTelecom 15 180.149.128.9 54.09 ms AS23724 China, Beijing, ChinaTelecom
电信去程，电信163直连日本。
联通回程，竟然走的是电信bgp+cn2线路，直连。
Traceroute to China, Guangzhou CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 210.21.4.130 (210.21.4.130), 30 hops max, 32 byte packets 1 10.0.18.1 0.34 ms * LAN Address 2 38.26.224.126 2.99 ms AS398993 Japan, Tokyo, cogentco.com 3 182.54.128.140 19.58 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.17 1.33 ms AS64050 Japan, Tokyo, bgp.net 5 202.55.27.93 1.60 ms AS4809 Japan, Tokyo, ChinaTelecom 6 * 7 59.43.182.242 60.94 ms * China, Guangdong, Guangzhou, ChinaTelecom 8 59.43.244.142 56.61 ms * China, Guangdong, Guangzhou, ChinaTelecom 9 202.97.91.189 73.60 ms AS4134 China, Guangdong, Guangzhou, ChinaTelecom 10 202.97.94.141 58.56 ms AS4134 China, Guangdong, Guangzhou, ChinaTelecom 11 202.97.81.2 64.67 ms AS4134 China, Guangdong, Guangzhou, ChinaTelecom 12 * 13 219.158.96.193 78.89 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 14 157.18.0.158 70.81 ms AS17816 China, Guangdong, Guangzhou, ChinaUnicom 15 120.80.79.194 63.69 ms AS17622 China, Guangdong, Guangzhou, ChinaUnicom 16 * 17 * Traceroute to China, Shanghai CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 58.247.8.158 (58.247.8.158), 30 hops max, 32 byte packets 1 10.0.18.1 0.19 ms * LAN Address 2 38.26.224.126 1.37 ms AS398993 Japan, Tokyo, cogentco.com 3 182.54.128.140 24.74 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.17 1.62 ms AS64050 Japan, Tokyo, bgp.net 5 202.55.27.93 1.59 ms AS4809 Japan, Tokyo, ChinaTelecom 6 59.43.186.185 57.80 ms * China, Shanghai, ChinaTelecom 7 59.43.244.122 31.07 ms * China, Shanghai, ChinaTelecom 8 * 9 * 10 202.97.87.154 35.44 ms AS4134 China, Shanghai, ChinaTelecom 11 * 12 * 13 * 14 58.247.221.178 37.65 ms AS17621 China, Shanghai, ChinaUnicom 15 139.226.225.22 41.02 ms AS17621 China, Shanghai, ChinaUnicom 16 58.247.8.153 53.91 ms AS17621 China, Shanghai, ChinaUnicom 17 * 18 * Traceroute to China, Beijing CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 123.125.99.1 (123.125.99.1), 30 hops max, 32 byte packets 1 10.0.18.1 0.22 ms * LAN Address 2 38.26.224.126 0.75 ms AS398993 Japan, Tokyo, cogentco.com 3 182.54.128.140 10.77 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.17 2.19 ms AS64050 Japan, Tokyo, bgp.net 5 202.55.27.93 1.47 ms AS4809 Japan, Tokyo, ChinaTelecom 6 * 7 59.43.182.233 75.63 ms * China, Beijing, ChinaTelecom 8 59.43.246.162 178.14 ms * China, Beijing, ChinaTelecom 9 202.97.12.173 158.30 ms AS4134 China, Beijing, ChinaTelecom 10 * 11 * 12 * 13 219.158.99.13 65.39 ms AS4837 China, Beijing, ChinaUnicom 14 123.126.0.234 79.04 ms AS4808 China, Beijing, ChinaUnicom 15 123.126.0.214 65.48 ms AS4808 China, Beijing, ChinaUnicom 16 61.148.158.106 77.37 ms AS4808 China, Beijing, ChinaUnicom 17 61.135.113.154 61.99 ms AS4808 China, Beijing, ChinaUnicom 18 * 19 123.125.99.1 79.62 ms AS4808 China, Beijing, ChinaUnicom

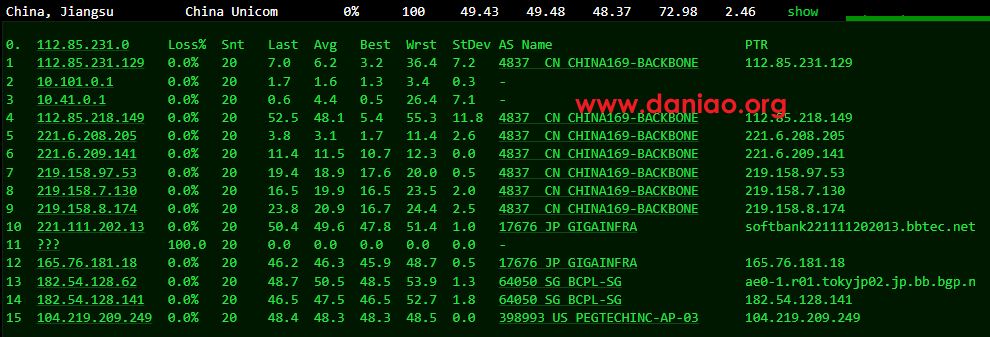

联通去程，联通169直连，日本走软银线路。
移动回程，日本走bgp+ntt，国内走移动骨干。
Traceroute to China, Guangzhou CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 120.196.212.25 (120.196.212.25), 30 hops max, 32 byte packets 1 10.0.18.1 0.23 ms * LAN Address 2 38.26.224.126 2.63 ms AS398993 Japan, Tokyo, cogentco.com 3 182.54.128.140 0.47 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.61 4.83 ms AS64050 Japan, Tokyo, bgp.net 5 61.120.146.129 4.97 ms AS2914 Japan, Tokyo, ntt.com 6 129.250.7.55 1.38 ms AS2914 ntt.com 7 129.250.2.51 48.08 ms AS2914 China, Hong Kong, ntt.com 8 129.250.6.92 47.43 ms AS2914 China, Hong Kong, ntt.com 9 203.131.241.82 50.96 ms AS2914 China, Hong Kong, ntt.com 10 223.120.2.117 50.52 ms AS58453 China, Hong Kong, ChinaMobile 11 * 12 221.183.55.86 51.80 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 13 221.183.52.85 53.87 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 14 221.176.24.101 57.11 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 15 111.24.5.173 64.71 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 16 221.176.24.5 63.48 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 17 211.136.249.121 62.14 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 18 211.136.204.97 61.84 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 19 211.136.196.238 66.18 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 20 211.136.203.14 69.39 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 21 * 22 * 23 120.196.212.25 57.95 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile Traceroute to China, Shanghai CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 221.183.55.22 (221.183.55.22), 30 hops max, 32 byte packets 1 10.0.18.1 0.28 ms * LAN Address 2 38.26.224.126 0.39 ms AS398993 Japan, Tokyo, cogentco.com 3 182.54.128.140 37.87 ms AS64050 Japan, Tokyo, bgp.net 4 182.54.128.61 4.88 ms AS64050 Japan, Tokyo, bgp.net 5 61.120.146.129 0.73 ms AS2914 Japan, Tokyo, ntt.com 6 129.250.7.55 1.36 ms AS2914 ntt.com 7 129.250.7.79 9.42 ms AS2914 Japan, Osaka, ntt.com 8 129.250.6.92 47.73 ms AS2914 China, Hong Kong, ntt.com 9 129.250.5.28 54.96 ms AS2914 China, Hong Kong, ntt.com 10 223.120.2.65 51.50 ms http: 403 http: 403 11 * 12 * 13 * 14 221.183.55.22 89.54 ms http: 403 http: 403 Traceroute to China, Beijing CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 211.136.25.153 (211.136.25.153), 30 hops max, 32 byte packets 1 10.0.18.1 0.39 ms http: 403 http: 403 2 38.26.224.126 0.52 ms http: 403 http: 403 3 182.54.128.140 0.66 ms http: 403 http: 403 4 182.54.128.61 0.79 ms http: 403 http: 403 5 61.120.146.129 1.67 ms http: 403 http: 403 6 129.250.7.55 1.58 ms http: 403 http: 403 7 129.250.7.79 8.67 ms http: 403 http: 403 8 129.250.5.33 43.88 ms http: 403 http: 403 9 129.250.5.28 57.82 ms http: 403 http: 403 10 129.250.5.33 64.37 ms http: 403 http: 403 11 * 12 * 13 * 14 * 15 * 16 * 17 111.24.2.134 91.53 ms http: 403 http: 403 18 * 19 211.136.63.66 89.95 ms http: 403 http: 403 20 211.136.95.226 110.61 ms http: 403 http: 403 21 * 22 * 23 * 24 211.136.25.153 93.51 ms http: 403 http: 403

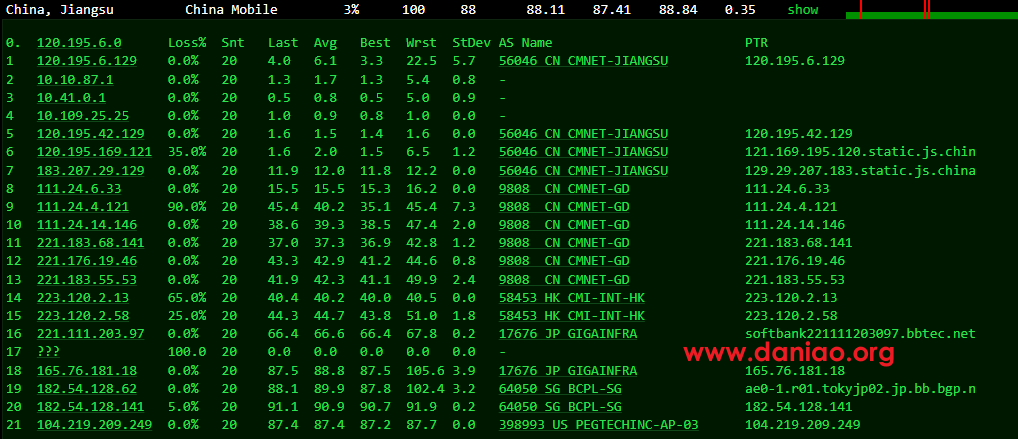

移动去程，走香港cmi跳软银到日本。

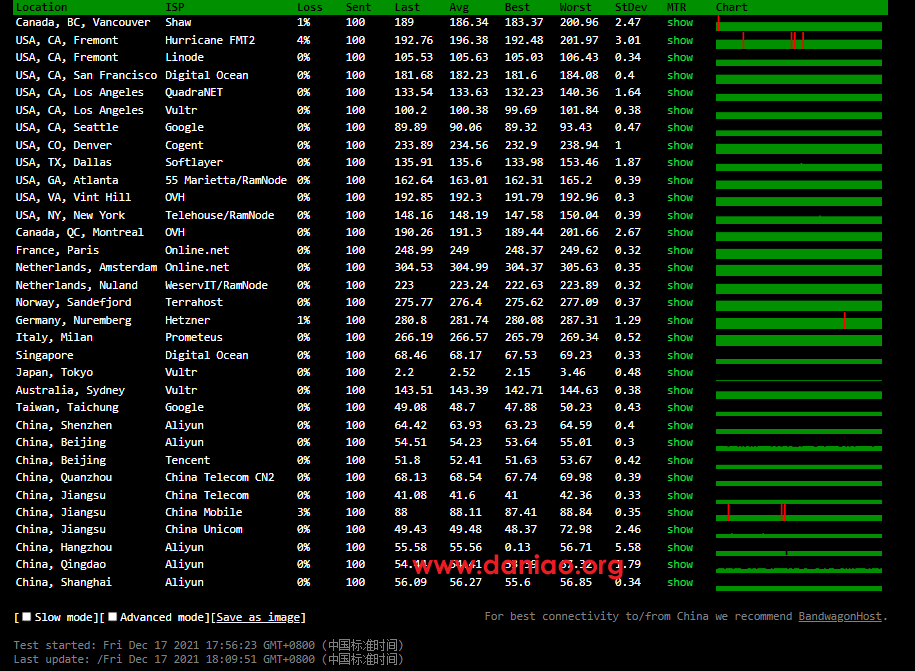

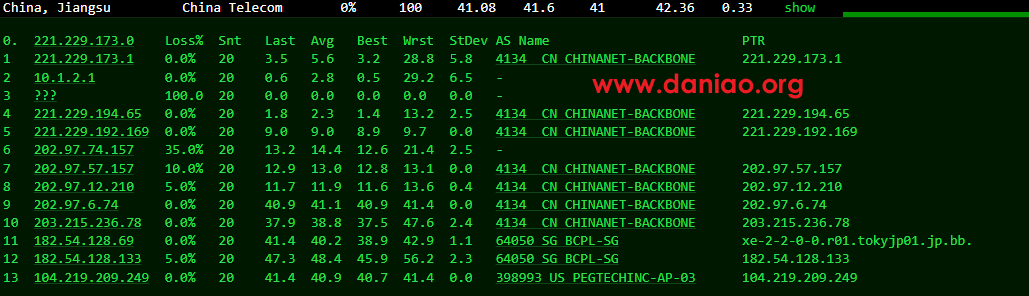

7、路由掉包
晚高峰测试，效果还可以。

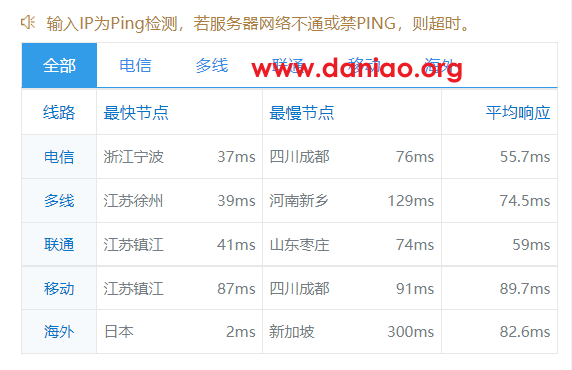

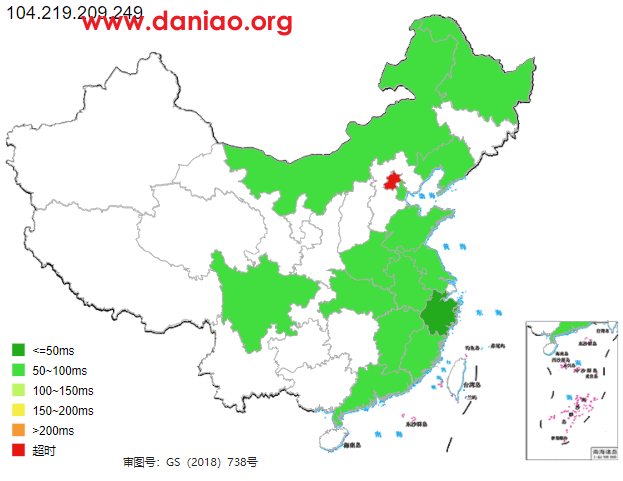

8、ping
数据提供：ping.chinaz.com，ping值看起来还是不错的。

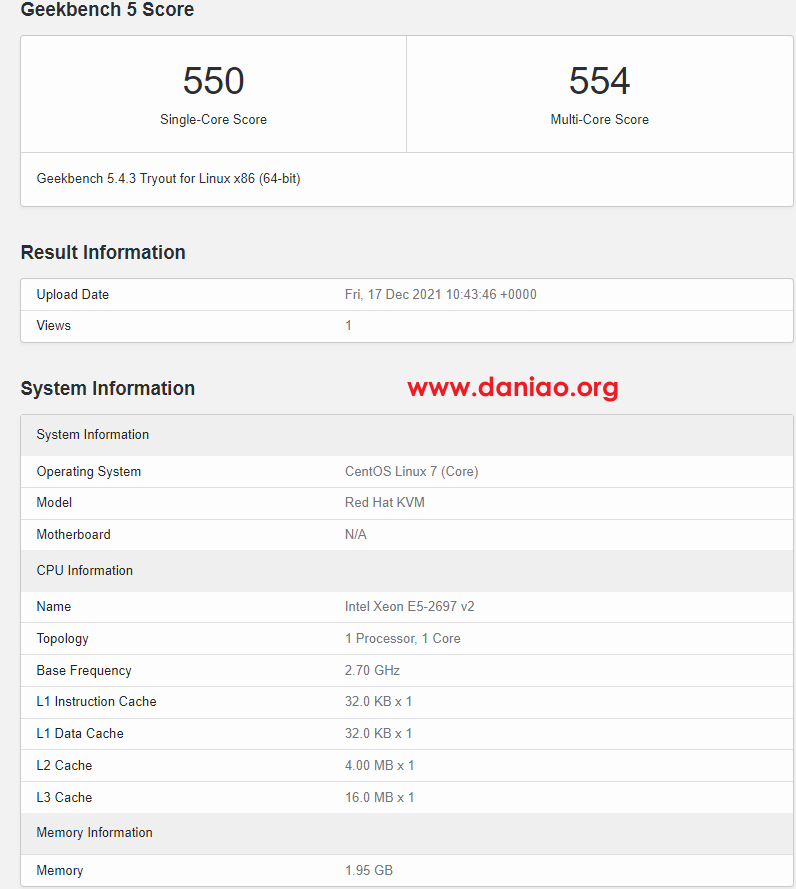

9、Geekbench 5 Benchmark Test
单核，550分，性能中等。
详细：https://browser.geekbench.com/v5/cpu/11656154
10、最后
线路总结：
电信，双程直连，回程走bgp+ntt线路，国内走联通AS4837，去程走163！
联通：双程直连，回程走bgp+cn2线路，联通169直连，日本走软银线路。
移动：双程直连，日本走bgp+ntt，国内走移动骨干，去程走cmi+日本软银。
