ioncloud是krypt旗下的云服务器品牌，目前正在积极扩充机房，比如说上个月新开通的达拉斯机房以及正在火热筹备中的华盛顿、纽约，夏威夷机房。
当然商家也不满足仅仅销售云服务器，也就在本月ion上架了新产品“独立服务器-裸金属服务器”，目前也仅有洛杉矶数据中心。这篇文章就来测评一台E3-1230v3的裸金属服务器，感兴趣的小伙伴可以围观。

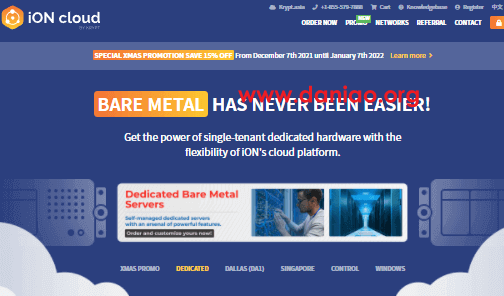

1、官网
2、洛杉矶裸金属云服务器
特征：洛杉矶机房，裸金属服务器自带5个IPv4（最多可扩展到18个ipv4）、每个月5T流量，流量可以扩展为15T。
可增加：CloudFlare Pro Firewall 月付$18.00
可增加： CloudFlare Business Firewall 月付$180.00
新品上架，目前9折优惠中，此外标注红色文字的为今天的测评服务器。
| CPU | 内存 | 硬盘 | 月流量 | 价格 | 购买 |
| E3-1230v2 | 16G | 1T SSD | 5T | $78/月 | 链接 |
| E3-1230v3 | 16G | 2T HDD | 5T | $80/月 | 链接 |
| E3-1230 | 16G | 2*2T HDD | 5T | $89/月 | 链接 |
| E3-1241v3 | 16G | 480G SSD+1T HDD | 5T | $107/月 | 链接 |
| E3-1270 | 16G | 2*1T HDD+2*500G HDD | 5T | $121/月 | 链接 |
| E-2286G | 32G | 2T SSD | 5T | $206/月 | 链接 |
| 2*E5-2650 | 64G | 2T HDD | 5T | $225/月 | 链接 |

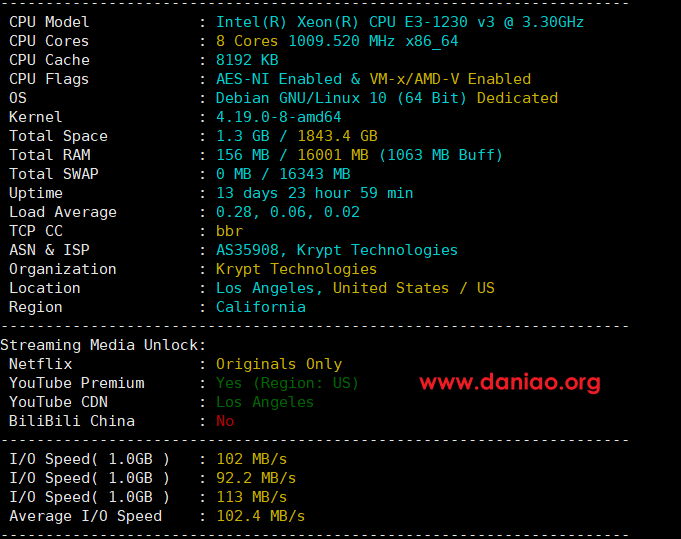

3、系统信息
CPU E3-1230 v3 @ 3.30GHz，磁盘IO：102.4 MB/s（hdd硬盘的标准速度O(∩_∩)O）
4、杂项测试

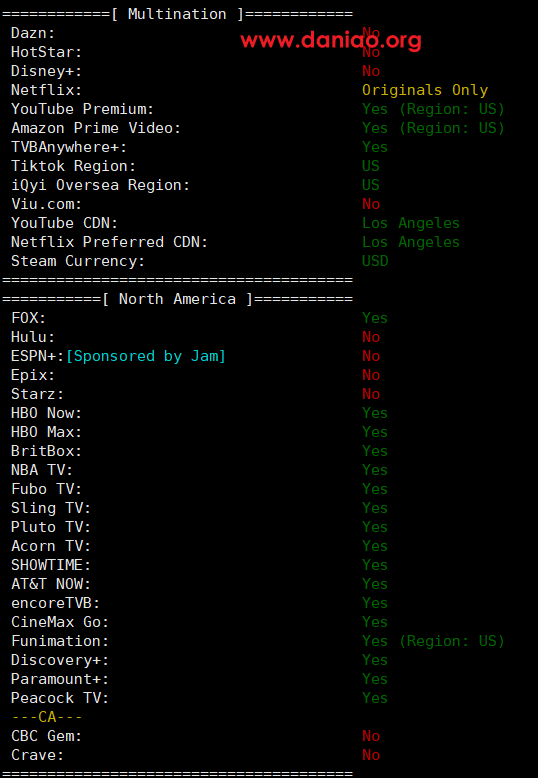

流媒体测试，测试结果，仅供参考。

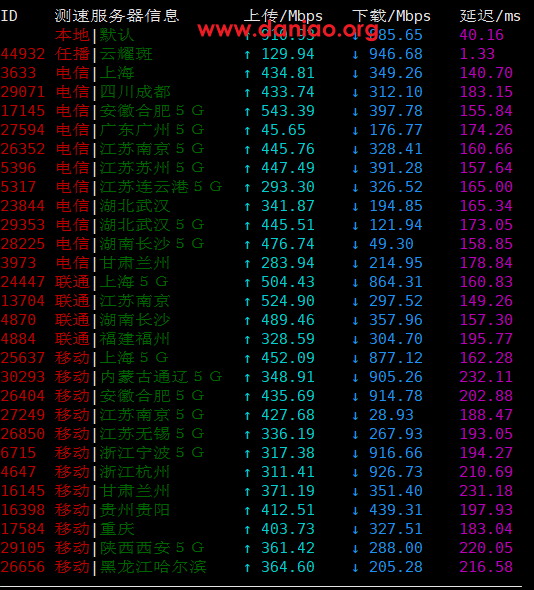

国内测速,，白天测试结果，上行速度还不错。等晚高峰继续测试对比。
继续放一张晚高峰的测试结果，从结果来看，三网跑的还是很不错的。

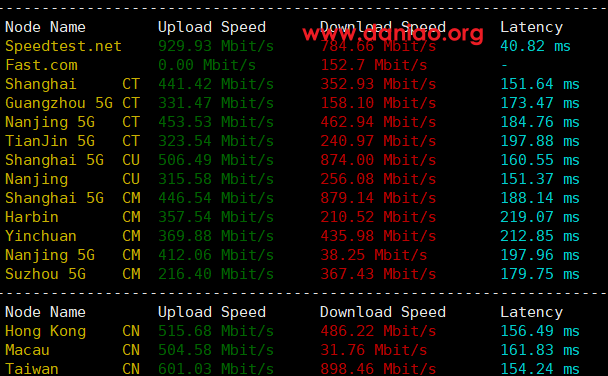

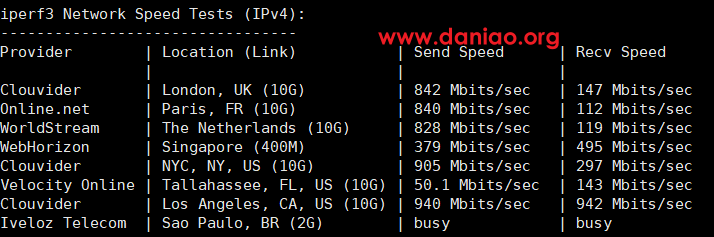

国外测速，欧美一些国家的测速。

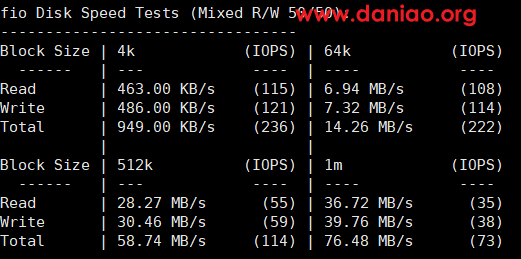

磁盘FIO：hdd硬盘的读写测试，自己看吧。
5、路由测试
电信回程，走的联通AS4837+电信163线路！
Traceroute to China, Guangzhou CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 113.108.209.1 (113.108.209.1), 30 hops max, 32 byte packets 1 174.139.80.169 0.29 ms AS35908 United States, California, Los Angeles, vpls.com 2 184.164.197.146 0.37 ms AS35908 United States, California, Los Angeles, vpls.com 3 184.164.193.109 0.90 ms AS35908 United States, California, Los Angeles, vpls.com 4 184.164.193.101 4.17 ms AS35908 United States, California, Los Angeles, vpls.com 5 184.164.220.20 7.60 ms AS35908 United States, California, San Jose, vpls.com 6 219.158.39.25 11.05 ms AS4837 United States, California, San Jose, ChinaUnicom 7 219.158.116.233 160.10 ms AS4837 China, Shanghai, ChinaUnicom 8 219.158.113.122 190.25 ms AS4837 China, Shanghai, ChinaUnicom 9 219.158.113.101 160.52 ms AS4837 China, Shanghai, ChinaUnicom 10 219.158.107.30 219.74 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 11 219.158.9.38 189.80 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 12 202.97.17.165 188.70 ms AS4134 China, Guangdong, Guangzhou, ChinaTelecom 13 202.97.95.101 187.47 ms AS4134 China, Guangdong, Guangzhou, ChinaTelecom 14 * 15 113.108.209.1 182.03 ms AS4134 China, Guangdong, Guangzhou, ChinaTelecom Traceroute to China, Shanghai CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 180.153.28.5 (180.153.28.5), 30 hops max, 32 byte packets 1 174.139.80.169 0.19 ms AS35908 United States, California, Los Angeles, vpls.com 2 184.164.197.146 0.53 ms AS35908 United States, California, Los Angeles, vpls.com 3 184.164.194.114 0.91 ms AS35908 United States, California, Los Angeles, vpls.com 4 184.164.193.101 0.84 ms AS35908 United States, California, Los Angeles, vpls.com 5 184.164.220.20 7.61 ms AS35908 United States, California, San Jose, vpls.com 6 219.158.39.25 7.34 ms AS4837 United States, California, San Jose, ChinaUnicom 7 219.158.116.233 160.27 ms AS4837 China, Shanghai, ChinaUnicom 8 219.158.6.185 160.93 ms AS4837 China, Shanghai, ChinaUnicom 9 219.158.8.209 188.67 ms AS4837 China, Shanghai, ChinaUnicom 10 219.158.109.170 162.82 ms AS4837 China, Shanghai, ChinaUnicom 11 202.97.17.193 173.94 ms AS4134 China, Shanghai, ChinaTelecom 12 202.97.62.233 181.20 ms AS4134 China, Shanghai, ChinaTelecom 13 61.152.24.213 162.25 ms AS4812 China, Shanghai, ChinaTelecom 14 101.95.207.234 167.37 ms AS4812 China, Shanghai, ChinaTelecom 15 124.74.232.62 168.56 ms AS4811 China, Shanghai, ChinaTelecom 16 101.227.255.46 161.70 ms AS4812 China, Shanghai, ChinaTelecom 17 180.153.28.5 173.69 ms AS4812 China, Shanghai, ChinaTelecom Traceroute to China, Beijing CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 180.149.128.9 (180.149.128.9), 30 hops max, 32 byte packets 1 174.139.80.169 0.23 ms AS35908 United States, California, Los Angeles, vpls.com 2 184.164.197.129 0.35 ms AS35908 United States, California, Los Angeles, vpls.com 3 184.164.193.109 0.86 ms AS35908 United States, California, Los Angeles, vpls.com 4 184.164.193.101 0.89 ms AS35908 United States, California, Los Angeles, vpls.com 5 184.164.220.20 8.23 ms AS35908 United States, California, San Jose, vpls.com 6 219.158.39.25 10.93 ms AS4837 United States, California, San Jose, ChinaUnicom 7 219.158.116.245 140.07 ms AS4837 China, Shanghai, ChinaUnicom 8 219.158.19.90 164.16 ms AS4837 China, Shanghai, ChinaUnicom 9 219.158.19.81 131.44 ms AS4837 China, Shanghai, ChinaUnicom 10 * 11 219.158.3.70 180.79 ms AS4837 China, Beijing, ChinaUnicom 12 * 13 * 14 * 15 36.110.246.237 154.90 ms AS23724 China, Beijing, ChinaTelecom 16 180.149.128.9 165.95 ms AS23724 China, Beijing, ChinaTelecom

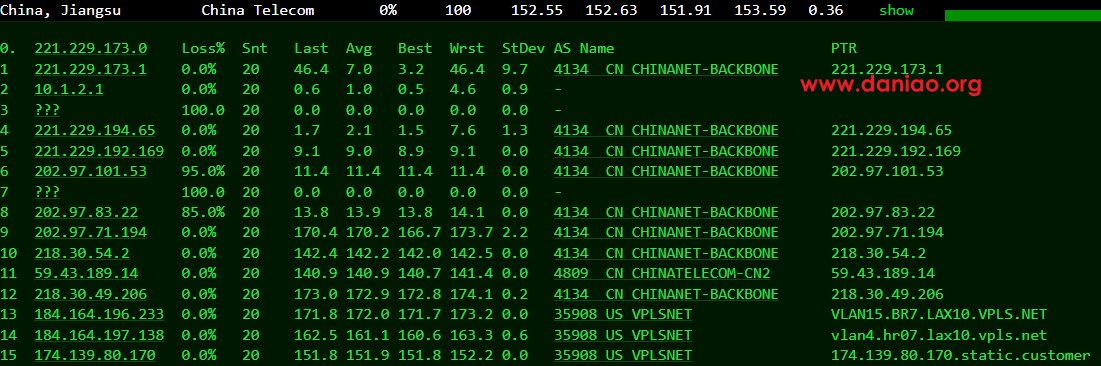

电信去程，回程还有一跳走了cn2。
联通回程，走的联通AS4837线路，直连。
Traceroute to China, Guangzhou CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 210.21.4.130 (210.21.4.130), 30 hops max, 32 byte packets 1 174.139.80.169 0.22 ms AS35908 United States, California, Los Angeles, vpls.com 2 184.164.197.146 0.62 ms AS35908 United States, California, Los Angeles, vpls.com 3 184.164.194.114 5.06 ms AS35908 United States, California, Los Angeles, vpls.com 4 219.158.34.173 165.32 ms AS4837 United States, California, Los Angeles, ChinaUnicom 5 219.158.103.5 151.10 ms AS4837 China, Beijing, ChinaUnicom 6 219.158.22.142 154.77 ms AS4837 China, Shanghai, ChinaUnicom 7 219.158.6.157 161.49 ms AS4837 China, Shanghai, ChinaUnicom 8 219.158.7.125 152.11 ms AS4837 China, Shanghai, ChinaUnicom 9 219.158.6.254 206.53 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 10 120.83.0.58 209.73 ms AS17816 China, Guangdong, Guangzhou, ChinaUnicom 11 120.80.79.194 206.76 ms AS17622 China, Guangdong, Guangzhou, ChinaUnicom 12 * 13 * 14 * 15 * 16 * 17 * 18 * 19 * 20 * 21 * Traceroute to China, Shanghai CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 58.247.8.158 (58.247.8.158), 30 hops max, 32 byte packets 1 174.139.80.169 0.73 ms AS35908 United States, California, Los Angeles, vpls.com 2 184.164.197.146 76.11 ms AS35908 United States, California, Los Angeles, vpls.com 3 184.164.194.114 0.89 ms AS35908 United States, California, Los Angeles, vpls.com 4 219.158.34.173 160.26 ms AS4837 United States, California, Los Angeles, ChinaUnicom 5 219.158.117.5 179.44 ms AS4837 China, Beijing, ChinaUnicom 6 219.158.111.218 154.38 ms AS4837 China, Shanghai, ChinaUnicom 7 219.158.113.122 179.91 ms AS4837 China, Shanghai, ChinaUnicom 8 * 9 * 10 139.226.228.46 158.46 ms AS17621 China, Shanghai, ChinaUnicom 11 139.226.225.22 158.99 ms AS17621 China, Shanghai, ChinaUnicom 12 58.247.8.153 170.16 ms AS17621 China, Shanghai, ChinaUnicom 13 * 14 * 15 * 16 * 17 * 18 * Traceroute to China, Beijing CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 123.125.99.1 (123.125.99.1), 30 hops max, 32 byte packets 1 174.139.80.169 0.20 ms AS35908 United States, California, Los Angeles, vpls.com 2 184.164.197.129 0.39 ms AS35908 United States, California, Los Angeles, vpls.com 3 184.164.193.109 0.75 ms AS35908 United States, California, Los Angeles, vpls.com 4 219.158.34.173 166.09 ms AS4837 United States, California, Los Angeles, ChinaUnicom 5 219.158.117.5 182.93 ms AS4837 China, Beijing, ChinaUnicom 6 219.158.3.145 182.07 ms AS4837 China, Beijing, ChinaUnicom 7 * 8 * 9 221.219.202.246 180.97 ms AS4808 China, Beijing, ChinaUnicom 10 124.65.194.50 182.34 ms AS4808 China, Beijing, ChinaUnicom 11 61.135.113.154 158.31 ms AS4808 China, Beijing, ChinaUnicom 12 * 13 123.125.99.1 182.74 ms AS4808 China, Beijing, ChinaUnicom

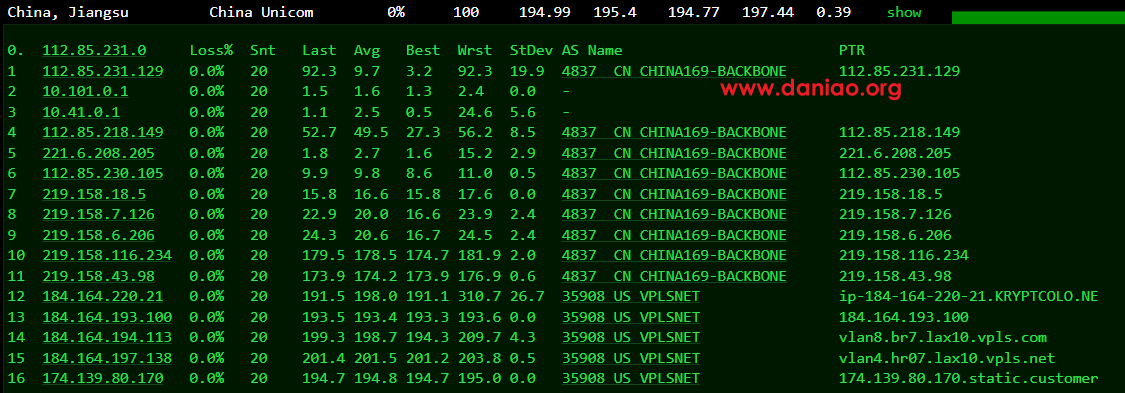

联通去程，还是走自家的骨干AS4837，直连。
移动回程，移动广州方向强制走的联通AS4837和移动自己的骨干线路。
北京、上海方向，从移动的洛杉矶节点直接回国；
Traceroute to China, Guangzhou CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 120.196.212.25 (120.196.212.25), 30 hops max, 32 byte packets 1 174.139.80.169 0.23 ms AS35908 United States, California, Los Angeles, vpls.com 2 184.164.197.146 0.26 ms AS35908 United States, California, Los Angeles, vpls.com 3 184.164.194.114 0.96 ms AS35908 United States, California, Los Angeles, vpls.com 4 184.164.193.101 0.91 ms AS35908 United States, California, Los Angeles, vpls.com 5 184.164.220.20 7.13 ms AS35908 United States, California, San Jose, vpls.com 6 219.158.39.25 9.27 ms AS4837 United States, California, San Jose, ChinaUnicom 7 219.158.116.233 165.02 ms AS4837 China, Shanghai, ChinaUnicom 8 219.158.6.185 165.63 ms AS4837 China, Shanghai, ChinaUnicom 9 * 10 219.158.109.10 196.24 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 11 219.158.9.74 192.66 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 12 219.158.46.146 195.03 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 13 221.183.94.177 221.03 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 14 * 15 211.136.214.130 197.96 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 16 211.136.203.22 198.52 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 17 * 18 211.139.180.110 193.69 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 19 120.196.212.25 194.65 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile Traceroute to China, Shanghai CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 221.183.55.22 (221.183.55.22), 30 hops max, 32 byte packets 1 174.139.80.169 4.78 ms AS35908 United States, California, Los Angeles, vpls.com 2 184.164.197.129 0.37 ms AS35908 United States, California, Los Angeles, vpls.com 3 184.164.193.36 0.90 ms AS35908 United States, California, Los Angeles, vpls.com 4 206.72.210.219 10.30 ms AS9009 United States, California, Los Angeles, coresite.com 5 223.120.6.17 8.66 ms AS58453 United States, California, Los Angeles, ChinaMobile 6 * 7 221.183.55.22 161.02 ms AS9808 China, Shanghai, ChinaMobile Traceroute to China, Beijing CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 211.136.25.153 (211.136.25.153), 30 hops max, 32 byte packets 1 174.139.80.169 0.64 ms AS35908 United States, California, Los Angeles, vpls.com 2 184.164.197.146 0.33 ms AS35908 United States, California, Los Angeles, vpls.com 3 184.164.193.36 0.76 ms AS35908 United States, California, Los Angeles, vpls.com 4 206.72.210.219 8.88 ms AS9009 United States, California, Los Angeles, coresite.com 5 223.120.6.22 8.68 ms http: 403 http: 403 6 * 7 * 8 * 9 * 10 111.24.2.97 192.09 ms http: 403 http: 403 11 111.24.2.134 200.68 ms http: 403 http: 403 12 * 13 211.136.67.166 192.77 ms http: 403 http: 403 14 211.136.63.66 201.53 ms http: 403 http: 403 15 211.136.95.226 192.14 ms http: 403 http: 403 16 * 17 211.136.25.153 198.06 ms http: 403 http: 403

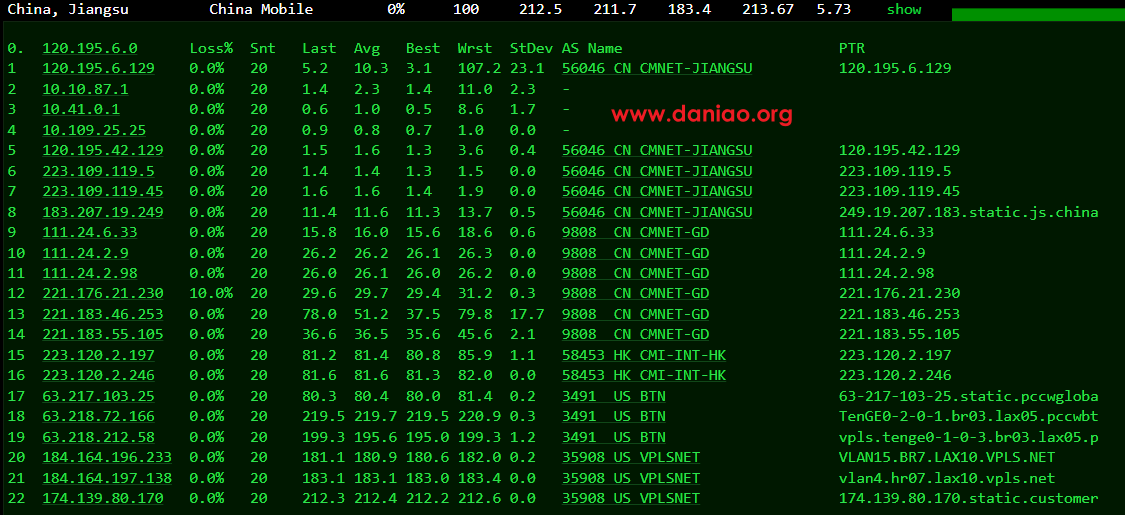

移动去程，走移动cmi，第17跳对接btn。

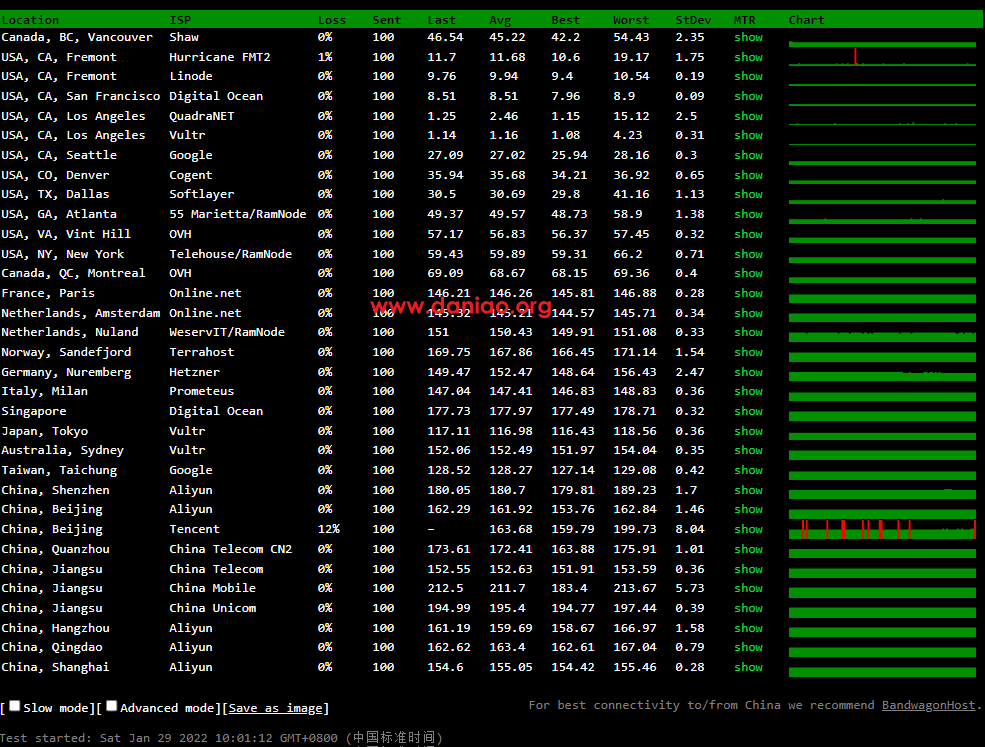

6、路由掉包
非晚高峰测试，仅供参考：

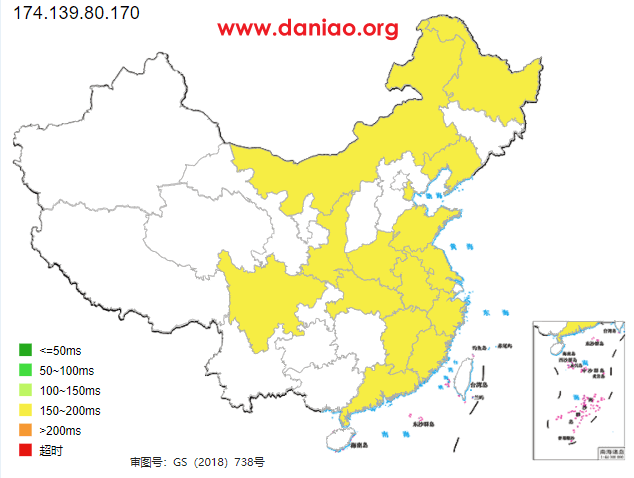

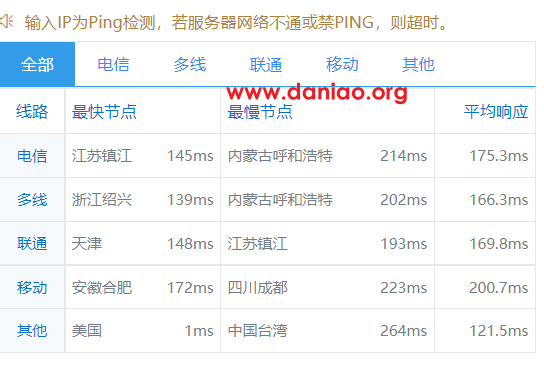

7、PING
数据提供：ping.chinaz.com

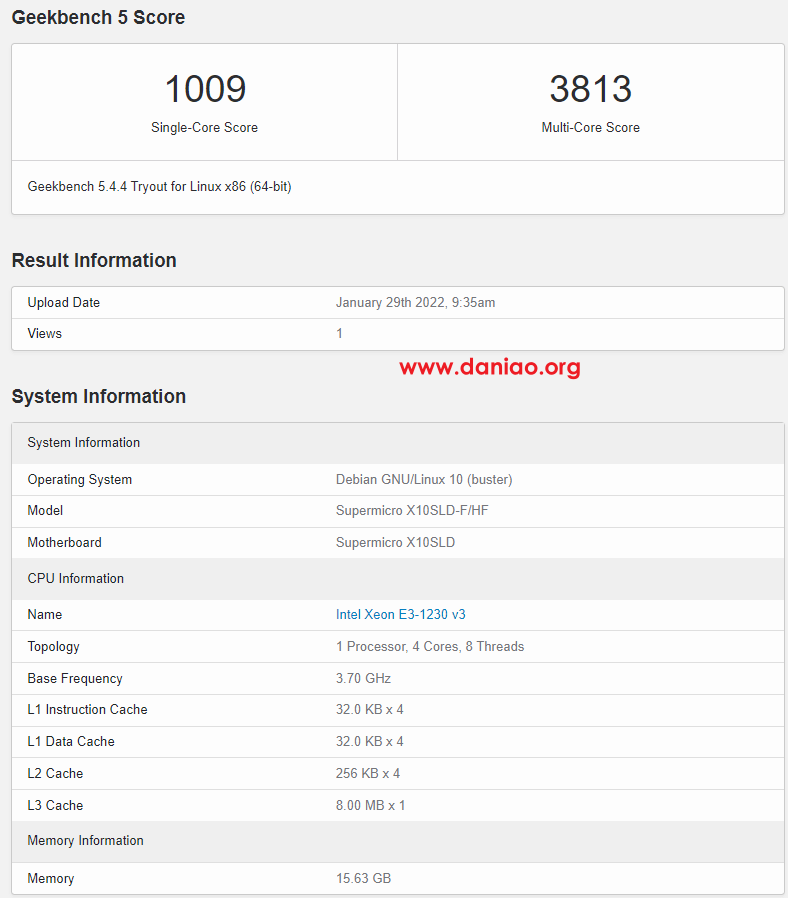

8、GB5 benchmark
单核：1009；8核：3813
详细：https://browser.geekbench.com/v5/cpu/12459944
9、最后
联通和电信回程都是走的AS4837回国，移动的部分回程走的是移动自家骨干回国。
去程：电信和联通走自己的骨干，直连；移动走的CMI对接btn；
线路应该是属于动态优化的，回程选择了比较靠谱的联通AS4837作为主要链路，AS4837在今年扩充后表现更加不俗。
