arkecx好不好，怎么样？这篇文章就为大家带来arkecx的日本东京机房CN2 GIA线路的云服务器（产品命名为Tokyo – China Optimized）的测评教程。此外日本机房还有一个常规普通线路了（产品命名为Global Locations-Ark*），感兴趣的小伙伴可以围观。
1、官网
2、东京cn2云服务器 ，Tokyo – China Optimized
中国内地优化，走CN2 GIA高端网络，1Gbps带宽，注意标注红色文字的为今天的测评机器。
9折优惠码：Q11NTEH40Q
| 内存 | CPU | SSD | 流量 | 价格 | 购买 |
| 2G | 2核 | 75G | 1T/月 | $187/月 | 链接 |
| 4G | 2核 | 100G | 2T/月 | $364/月 | 链接 |
| 4G | 4核 | 100G | 3T/月 | $541/月 | 链接 |

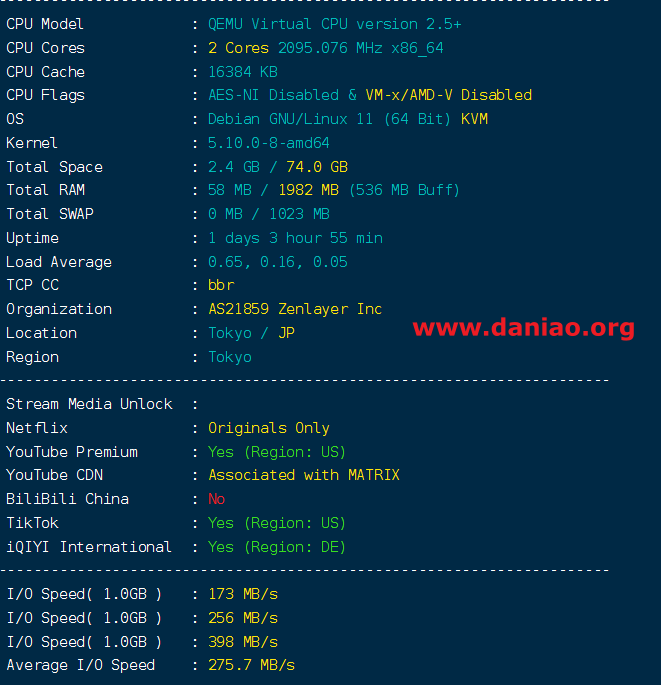

3、系统信息
CPU型号被隐藏，主频为2.1GHz，硬盘I/O大致在275MB/s。
4、杂项测试

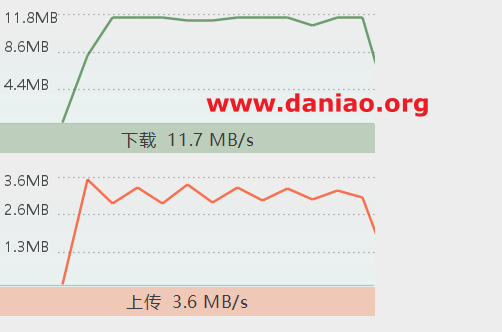

江苏电信100M带宽本地下载和上传测试，同样是晚高峰22点的测试结果，本地带宽跑的还是不错的。

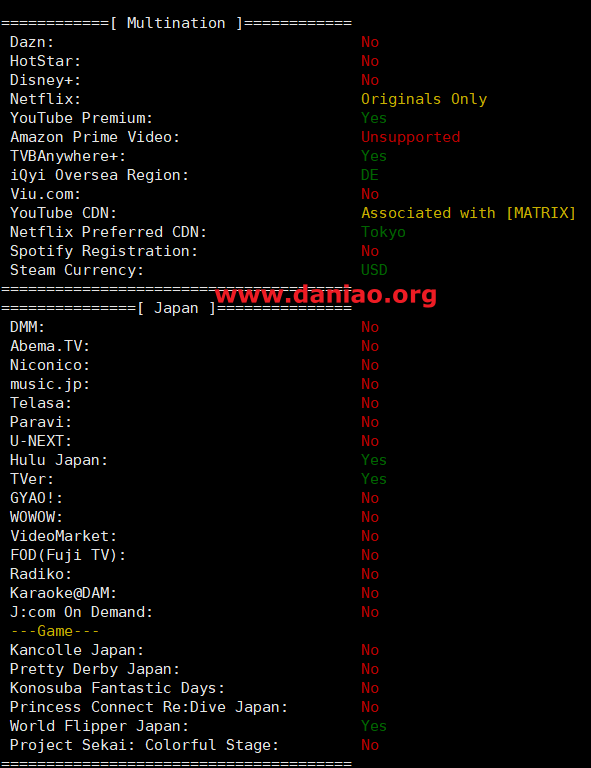

流媒体测试

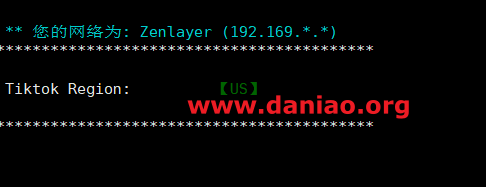

流媒体解锁测试-TIKTOK，如下：

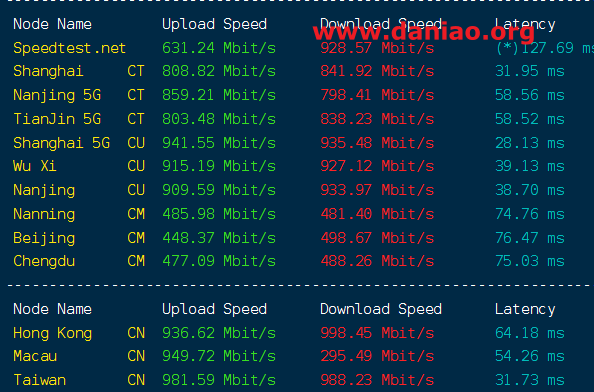

国内测速，晚高峰22点测试结果，这速度可以了，相比较而言移动稍差点。

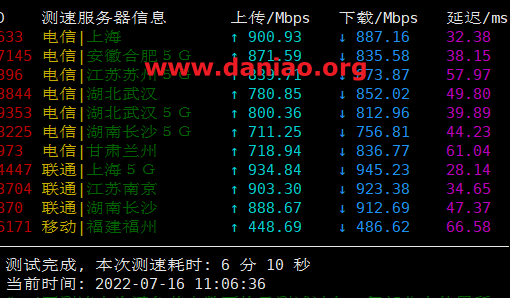

又测试了晚高峰的三网速度：和上图对比来看，基本没啥却别。

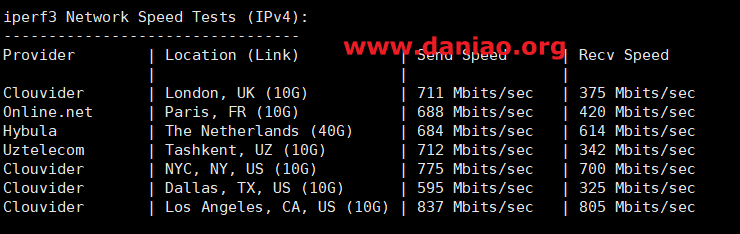

国外测速：iperf3跑欧美节点速度如下。

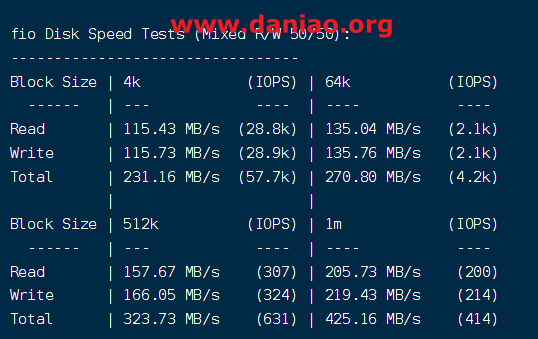

磁盘FIO：FIO详细测试硬盘的读写情况，数据如下，4k的读写还是很不错的。
5、路由测试
电信回程，直连，全部走cn2.
Traceroute to China, Guangzhou CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 113.108.209.1 (113.108.209.1), 30 hops max, 32 byte packets 1 5.7.223.1 8.03 ms AS6805 Germany, telefonica.de 2 * 3 * 4 202.55.27.225 1.20 ms AS4809 Japan, Tokyo, ChinaTelecom 5 59.43.183.53 33.56 ms * China, Shanghai, ChinaTelecom 6 * 7 59.43.130.217 40.60 ms * China, Shanghai, ChinaTelecom 8 59.43.80.141 42.72 ms * China, Shanghai, ChinaTelecom 9 * 10 113.96.5.66 109.26 ms AS4134 China, Guangdong, Guangzhou, ChinaTelecom 11 113.108.209.1 57.84 ms AS4134 China, Guangdong, Guangzhou, ChinaTelecom Traceroute to China, Shanghai CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 180.153.28.5 (180.153.28.5), 30 hops max, 32 byte packets 1 5.7.223.1 2.61 ms AS6805 Germany, telefonica.de 2 104.254.118.122 29.28 ms * Europe Regions, zenlayer.com 3 * 4 202.55.27.225 1.05 ms AS4809 Japan, Tokyo, ChinaTelecom 5 59.43.186.185 30.72 ms * China, Shanghai, ChinaTelecom 6 * 7 59.43.138.49 43.91 ms * China, Shanghai, ChinaTelecom 8 101.95.88.194 32.13 ms AS4812 China, Shanghai, ChinaTelecom 9 * 10 124.74.232.242 37.29 ms AS4811 China, Shanghai, ChinaTelecom 11 101.227.255.34 33.32 ms AS4812 China, Shanghai, ChinaTelecom 12 * 13 * 14 * 15 * 16 * 17 * 18 * 19 * 20 * 21 * 22 * 23 * 24 * 25 * 26 * 27 * 28 * 29 * 30 * Traceroute to China, Beijing CT (TCP Mode, Max 30 Hop) ============================================================ traceroute to 180.149.128.9 (180.149.128.9), 30 hops max, 32 byte packets 1 5.7.223.1 7.48 ms AS6805 Germany, telefonica.de 2 104.254.118.122 8.79 ms * Europe Regions, zenlayer.com 3 * 4 202.55.27.101 1.29 ms AS4809 Japan, Tokyo, ChinaTelecom 5 59.43.183.53 25.67 ms * China, Shanghai, ChinaTelecom 6 59.43.247.141 53.68 ms * China, Beijing, ChinaTelecom 7 * 8 59.43.131.253 63.06 ms * China, Beijing, ChinaTelecom 9 * 10 219.142.9.78 50.28 ms AS4847 China, Beijing, ChinaTelecom 11 * 12 * 13 * 14 * 15 * 16 * 17 * 18 * 19 * 20 * 21 * 22 * 23 * 24 * 25 * 26 * 27 * 28 * 29 * 30 *
电信去程，直连，走cn2。
联通回程，直连，走AS10099+AS9929联通的高端线路。
Traceroute to China, Guangzhou CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 210.21.4.130 (210.21.4.130), 30 hops max, 32 byte packets 1 5.7.223.1 5.93 ms AS6805 Germany, telefonica.de 2 104.254.118.122 125.88 ms * Europe Regions, zenlayer.com 3 * 4 61.14.203.193 2.98 ms * Japan, Tokyo, ChinaUnicom 5 162.219.35.217 27.01 ms AS10099 Japan, Tokyo, ChinaUnicom 6 218.105.2.89 26.54 ms AS9929 China, Shanghai, ChinaUnicom 7 218.105.131.181 55.29 ms AS9929 China, Guangdong, Guangzhou, ChinaUnicom 8 210.14.161.154 53.78 ms * China, Guangdong, Guangzhou, ChinaUnicom 9 219.158.42.9 60.09 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 10 219.158.10.249 58.11 ms AS4837 China, Guangdong, Guangzhou, ChinaUnicom 11 112.91.0.254 62.72 ms AS17816 China, Guangdong, Guangzhou, ChinaUnicom 12 120.80.121.30 55.48 ms AS17622 China, Guangdong, Guangzhou, ChinaUnicom 13 120.80.175.70 58.54 ms AS17622 China, Guangdong, Guangzhou, ChinaUnicom 14 * 15 * 16 * 17 * 18 * 19 * 20 * 21 * 22 * 23 * 24 * 25 * 26 * 27 * 28 * 29 * 30 * Traceroute to China, Shanghai CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 58.247.8.158 (58.247.8.158), 30 hops max, 32 byte packets 1 5.7.223.1 6.61 ms AS6805 Germany, telefonica.de 2 104.254.118.122 2.33 ms * Europe Regions, zenlayer.com 3 * 4 61.14.203.193 2.79 ms * Japan, Tokyo, ChinaUnicom 5 162.219.35.217 28.19 ms AS10099 Japan, Tokyo, ChinaUnicom 6 218.105.2.205 29.95 ms AS9929 China, Shanghai, ChinaUnicom 7 218.105.2.174 28.58 ms AS9929 China, Shanghai, ChinaUnicom 8 219.158.113.153 28.75 ms AS4837 China, Shanghai, ChinaUnicom 9 * 10 * 11 58.247.221.178 30.13 ms AS17621 China, Shanghai, ChinaUnicom 12 139.226.225.22 30.34 ms AS17621 China, Shanghai, ChinaUnicom 13 58.247.8.153 43.53 ms AS17621 China, Shanghai, ChinaUnicom 14 * 15 * 16 * 17 * 18 * 19 * 20 * 21 * 22 * 23 * 24 * 25 * 26 * 27 * 28 * 29 * 30 * Traceroute to China, Beijing CU (TCP Mode, Max 30 Hop) ============================================================ traceroute to 123.125.99.1 (123.125.99.1), 30 hops max, 32 byte packets 1 5.7.223.1 6.85 ms AS6805 Germany, telefonica.de 2 104.254.118.122 2.99 ms * Europe Regions, zenlayer.com 3 * 4 61.14.203.193 2.75 ms * Japan, Tokyo, ChinaUnicom 5 162.219.35.217 26.82 ms AS10099 Japan, Tokyo, ChinaUnicom 6 218.105.2.93 28.02 ms AS9929 China, Shanghai, ChinaUnicom 7 218.105.131.101 48.38 ms AS9929 China, Beijing, ChinaUnicom 8 210.78.30.158 49.41 ms * China, Beijing, ChinaUnicom 9 219.158.35.17 51.07 ms AS4837 China, Beijing, ChinaUnicom 10 219.158.102.201 48.82 ms AS4837 China, Beijing, ChinaUnicom 11 * 12 202.96.12.58 51.78 ms AS4808 China, Beijing, ChinaUnicom 13 124.65.194.50 48.63 ms AS4808 China, Beijing, ChinaUnicom 14 61.135.113.154 50.42 ms AS4808 China, Beijing, ChinaUnicom 15 * 16 123.125.99.1 54.66 ms AS4808 China, Beijing, ChinaUnicom

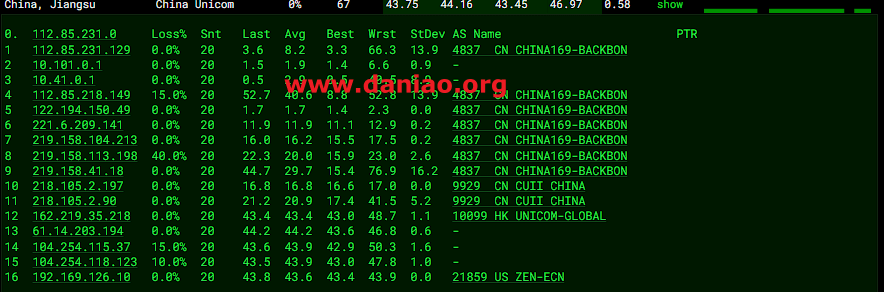

联通去程，直连和回程一样还是走的联通高端线路AS10099+AS9929
移动回程，直连，走移动cmi。
Traceroute to China, Guangzhou CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 120.196.212.25 (120.196.212.25), 30 hops max, 32 byte packets 1 5.7.223.1 9.47 ms AS6805 Germany, telefonica.de 2 104.254.118.122 1.80 ms * Europe Regions, zenlayer.com 3 * 4 223.119.7.141 0.96 ms AS58453 Japan, Tokyo, ChinaMobile 5 * 6 221.183.55.54 60.11 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 7 221.183.52.85 87.07 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 8 221.176.24.9 61.54 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 9 111.24.5.189 103.84 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 10 111.24.5.22 62.28 ms AS9808 China, Guangdong, Guangzhou, ChinaMobile 11 183.235.226.5 76.29 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 12 211.139.180.106 62.26 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 13 211.139.180.110 63.27 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile 14 * 15 * 16 * 17 * 18 120.196.212.25 62.64 ms AS56040 China, Guangdong, Guangzhou, ChinaMobile Traceroute to China, Shanghai CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 221.183.55.22 (221.183.55.22), 30 hops max, 32 byte packets 1 5.7.223.1 1.55 ms AS6805 Germany, telefonica.de 2 104.254.118.122 1.93 ms * Europe Regions, zenlayer.com 3 * 4 223.119.7.141 1.06 ms AS58453 Japan, Tokyo, ChinaMobile 5 223.120.2.193 1.94 ms AS58453 Japan, Tokyo, ChinaMobile 6 * 7 * 8 * 9 * 10 * 11 * 12 * 13 * 14 * 15 * 16 * 17 * 18 * 19 * 20 * 21 * 22 * 23 * 24 * 25 * 26 * 27 * 28 * 29 * 30 * Traceroute to China, Beijing CM (TCP Mode, Max 30 Hop) ============================================================ traceroute to 211.136.25.153 (211.136.25.153), 30 hops max, 32 byte packets 1 5.7.223.1 6.30 ms AS6805 Germany, telefonica.de 2 104.254.118.122 4.42 ms * Europe Regions, zenlayer.com 3 * 4 223.119.7.141 1.01 ms AS58453 Japan, Tokyo, ChinaMobile 5 * 6 * 7 221.183.46.254 76.14 ms AS9808 China, Beijing, ChinaMobile 8 * 9 111.24.17.162 74.69 ms AS9808 China, Beijing, ChinaMobile 10 111.24.2.134 75.61 ms AS9808 China, Beijing, ChinaMobile 11 * 12 211.136.67.166 77.36 ms AS56048 China, Beijing, ChinaMobile 13 211.136.63.66 76.23 ms AS56048 China, Beijing, ChinaMobile 14 211.136.95.226 79.24 ms AS56048 China, Beijing, ChinaMobile 15 * 16 211.136.25.153 77.85 ms AS56048 China, Beijing, ChinaMobile

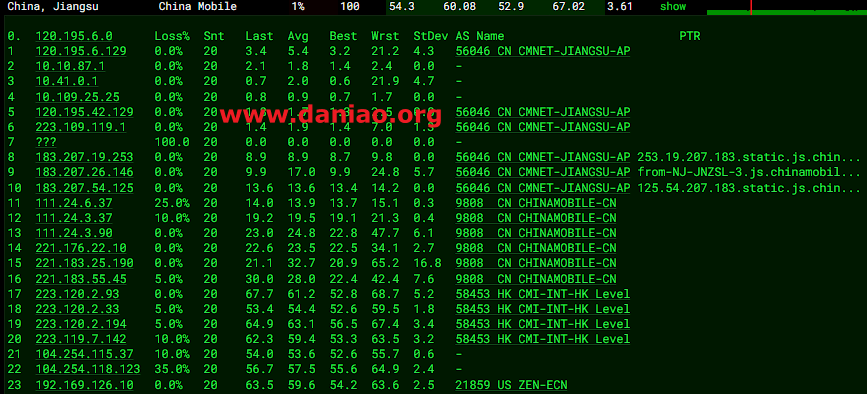

移动去程，走移动cmi直连日本。

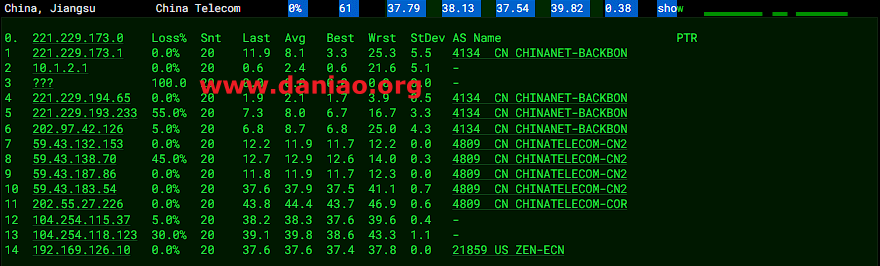

6、路由掉包
晚高峰测试，掉包情况良好，一年绿油油。

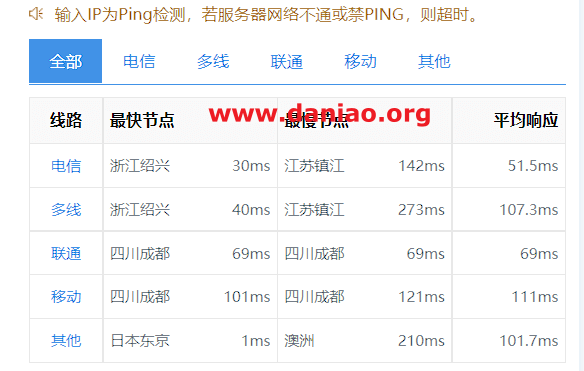

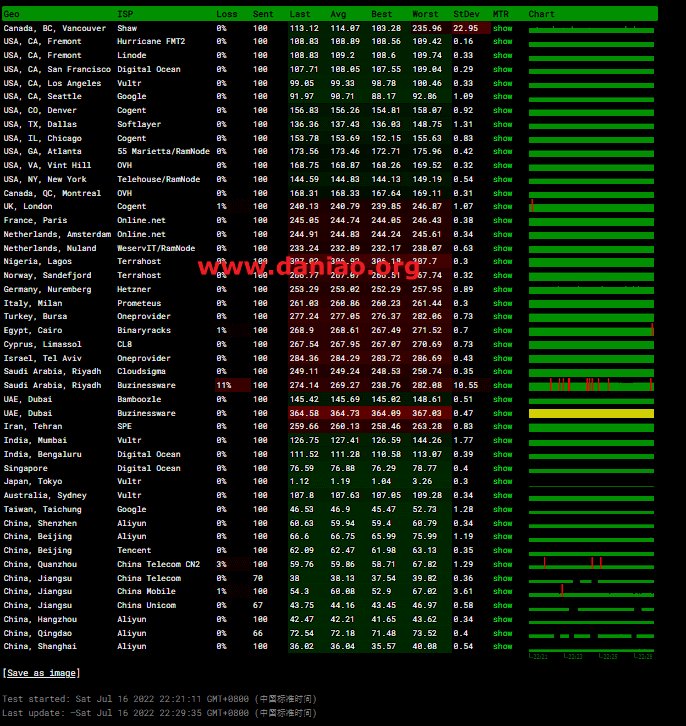

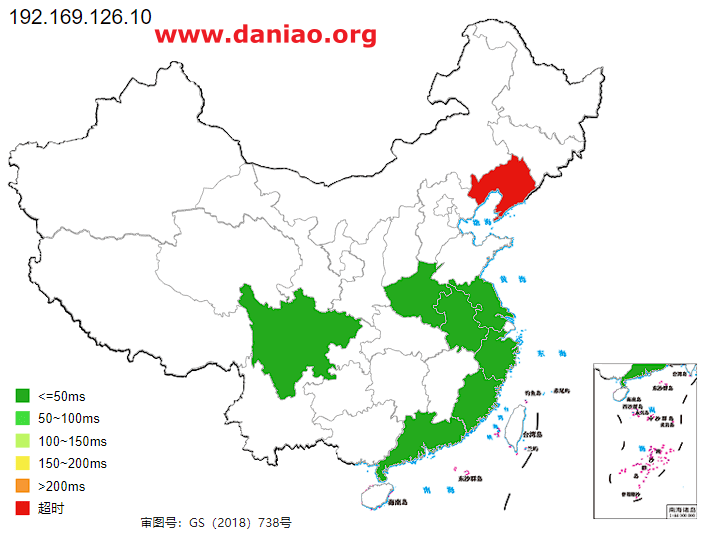

7、ping
电信和联通的ping值很不错，移动受限于线路，ping值稍差。

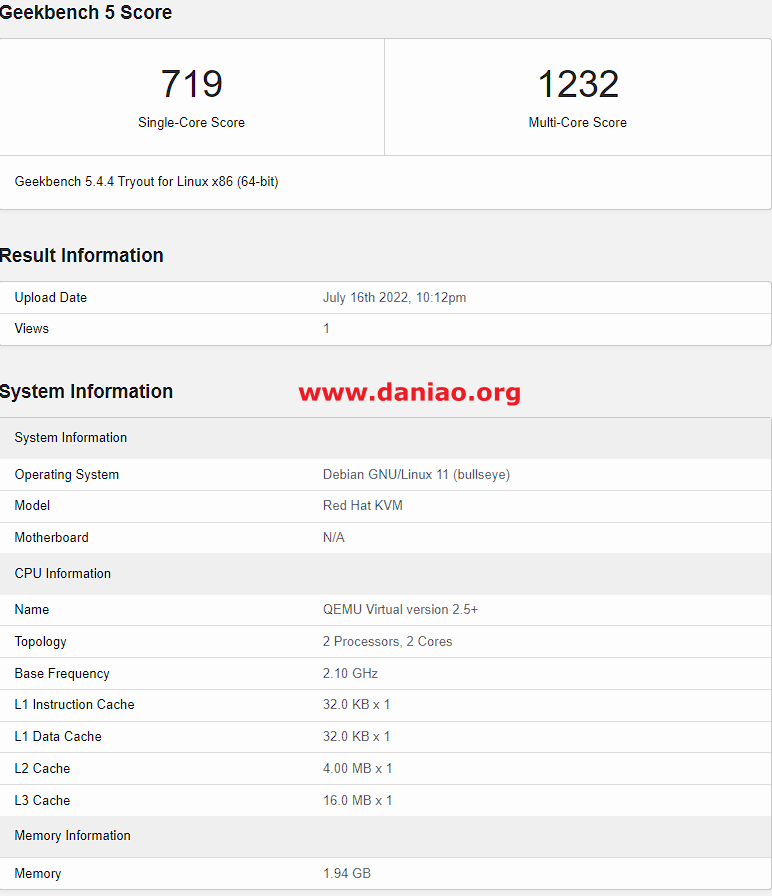

8、Geekbench 5 Score
单核：719，双核：1232，性能强劲。
详细：https://browser.geekbench.com/v5/cpu/16048596
9、最后
线路总结：电信双程CN2 GIA、联通双程AS9929、移动双程CMI
性能方面：CPU、硬盘读写这两个都很强力，也就是说机器性能和线路带宽都没问题。
缺点：价格太贵了，其他没啥毛病。
购买链接：https://www.arkecx.com/store/arkvm-tyo-china-optimized
9折优惠码：Q11NTEH40Q
